Bench Servo Drilling And Tapping Machine

YueLi is one of the famous China Bench Servo Drilling And Tapping Machine manufacturers and suppliers. Our factory specializes in manufacturing of Bench Servo Drilling And Tapping Machine.Function features: The bench servo drilling machine is driven by double servo motors to achieve drilling and tapping processing, saving processing time and improving product accuracy. The electrical system is controlled by PLC, simple operation and low failure rate. The equipment has the characteristics of "high precision, high efficiency, automation", one set of 2-3 sets of tapping machine operation, which can double the production efficiency for customers.

Send Inquiry

Product Description

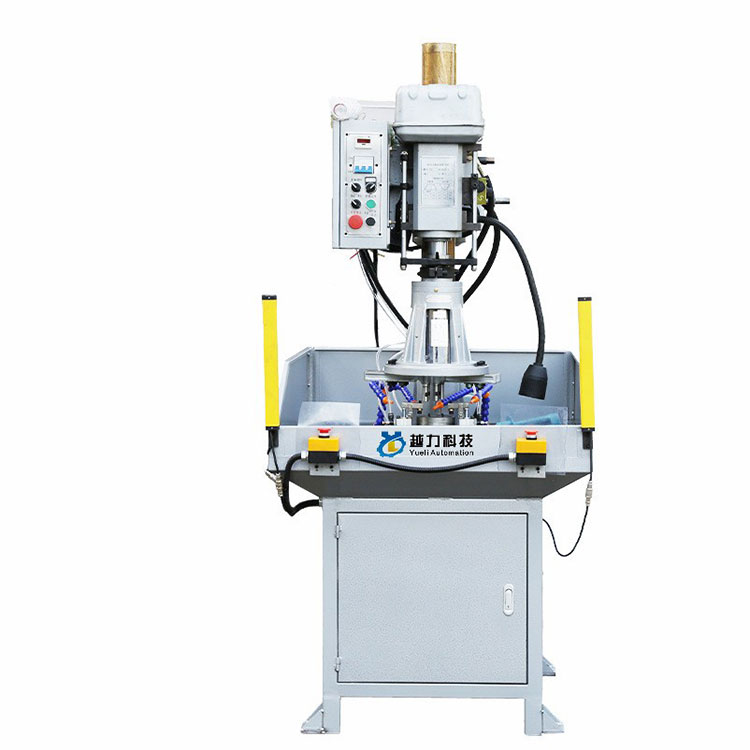

Bench servo drilling and tapping machine

Function features: The bench servo drilling machine is driven by double servo motors to achieve drilling and tapping processing, saving processing time and improving product accuracy. The electrical system is controlled by PLC, simple operation and low failure rate. The equipment has the characteristics of "high precision, high efficiency, automation", one set of 2-3 sets of tapping machine operation, which can double the production efficiency for customers.

Technical parameter

Model	ZS-CNC3-100L	ZS-CNC3-130L	ZS-CNC5-150L
Machine Size	600×750×1800	600×750×1800	600×750×2000
Effective Size Of Table	230×230	230×230	420×620
Column Diameter	Φ74	Φ74	Φ104
Shaft Diameter	Φ50	Φ50	Φ70
Spindle Taper	JT6	JT6	B18
The Distance From The Time Spindle To The Time Center On The End Of The Time Column	180mm	180mm	220mm
Principal Axis Stroke	70mm	100mm	80mm
Spindle Speed	Optional	Optional	选配
Motor Power	1.8Kw	1.8Kw	2.3Kw
Maximum Hole Diameter	S45C/M12	S45C/M12	S45C/M16
Gross Weight	170Kg	180Kg	300Kg
