Pneumatic Drilling Machine

Our products are CE certified and have in stock of factory, welcome to wholesale ZS5 Pneumatic Drilling Machine from us. ZS5 bench pneumatic drilling machine, beautiful appearance, increased machine structure, good rigidity, suitable for gravity cutting. The circulating cooling system reduces the temperature of the bit and extends the service life of the bit. This equipment has the characteristics of high precision, high efficiency and high degree of automation, and one person can operate 2-3 machines at the same time, which can improve the production efficiency of customers.

Model:ZS5

Send Inquiry

Product Description

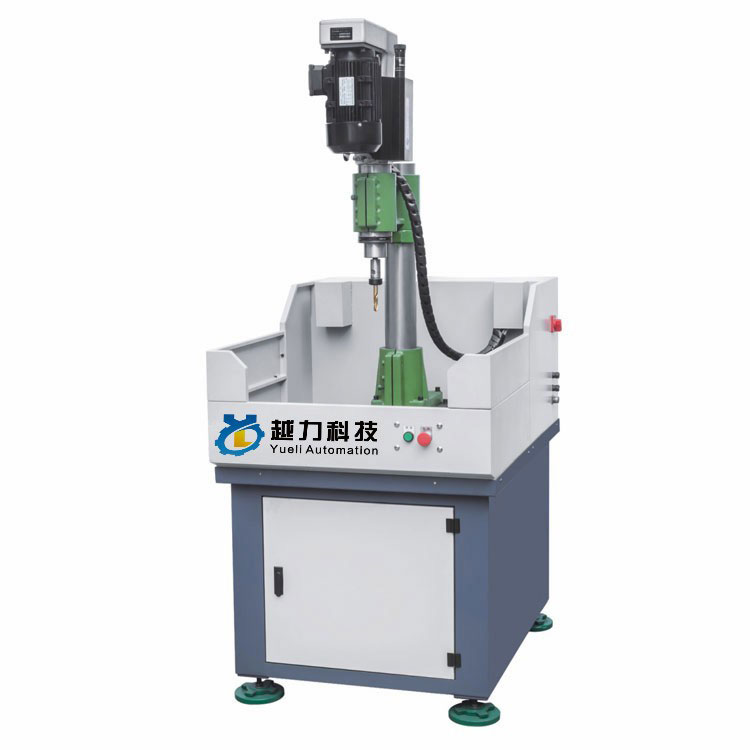

ZS5 pneumatic drilling machine

Functional features:

ZS5 bench pneumatic drilling machine, beautiful appearance, increased machine structure, good rigidity, suitable for gravity cutting. The circulating cooling system reduces the temperature of the bit and extends the service life of the bit. This equipment has the characteristics of high precision, high efficiency and high degree of automation, and one person can operate 2-3 machines at the same time, which can improve the production efficiency of customers.

ZS5 bench pneumatic drilling machine reference data

Model	ZS5-100L	ZS5-150L
Machine Size	850×1050×2000	850×1050×2000
Effective Size Of Table	420×620	420×620
Column Diameter	Φ104	Φ104
Shaft Diameter	Φ70	Φ70
Spindle Taper	B18	B18
Spindle Runout	≤0.02mm	≤0.02mm
Distance From Spindle Center Of Column End Face	220mm	220mm
Principal Axis Stroke	100mm	150mm
Spindle Speed	Optional	Optional
Motor Power	1.1Kw/1.5Kw	1.1Kw/1.5Kw
Maximum Hole Diameter	S45C/Φ16	S45C/Φ16
Standard Work Pressure	0.6MPa	0.6MPa
Gross Weight	280Kg	300Kg
