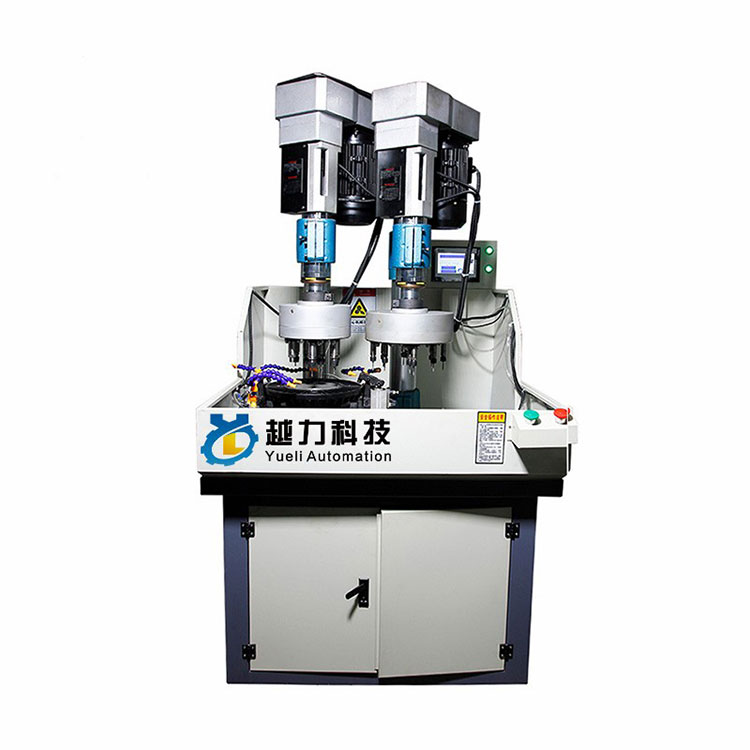

YueLi is one of the professional Table Tapping Machine manufacturers and suppliers in China. Table 1 tapping machine appearance, a tapping machine is driven by a pair of high-precision switching gear feeding, feeding system with friction clutch, in the processing overload automatically disconnected chain drive, to ensure that the tapping is not damaged. Because it is gear driven, it is not easy to wear, strong anti-overload ability, suitable for high-frequency tapping processing. At the same time, one person can operate 2-3 Taiwan tapping machines, which can improve the production efficiency of customers.
Table 1 tapping machine appearance, a tapping machine is driven by a pair of high-precision switching gear feeding, feeding system with friction clutch, in the processing overload automatically disconnected chain drive, to ensure that the tapping is not damaged. Because it is gear driven, it is not easy to wear, strong anti-overload ability, suitable for high-frequency tapping processing. At the same time, one person can operate 2-3 Taiwan tapping machines, which can improve the production efficiency of customers.
model | ZS-C1 | ZS-C2 | ZS-C3 | ||
Machine size | 600×750×1800 | 600×750×1800 | 850×1050×2000 | ||
Effective size of table | 230×230 | 230×230 | 340×340 | ||
Column diameter | Φ74 | Φ85 | Φ95 | ||
Shaft diameter | Φ42 | Φ70 | Φ85 | ||
Spindle taper | B16 | B18 | MT3 | ||
The distance from the time spindle to the time center on the end of the time column | 180mm | 235mm | 250mm | ||
Spindle travel | 45mm | 65mm | 65mm | ||
Spindle speed | Optional | Optional | Optional | ||
Motor power | 0.75Kw | 1.1Kw | 1.5Kw | ||
Maximum hole diameter | S45C/M8 | S45C/M16 | S45C/M30 | ||
Gross weight | 180Kg | 200Kg | 300Kg |
