Zs4 Bench Pneumatic Drilling Machine

Welcome to wholesale Zs4 Bench Pneumatic Drilling Machine from our factory at any time. We will provide you with factory discount prices for our products. YueLi is Zs4 Bench Pneumatic Drilling Machine manufacturers and suppliers in China. ZS4 pneumatic drilling machine, beautiful appearance, compact structure, with a pulley at the bottom, can be placed at will. The circulating cooling system reduces the temperature of the bit and extends the service life of the bit. This equipment has the characteristics of high precision, high efficiency and high degree of automation, and one person can operate 2-3 machines at the same time, which can improve the production efficiency of customers.

Send Inquiry

Product Description

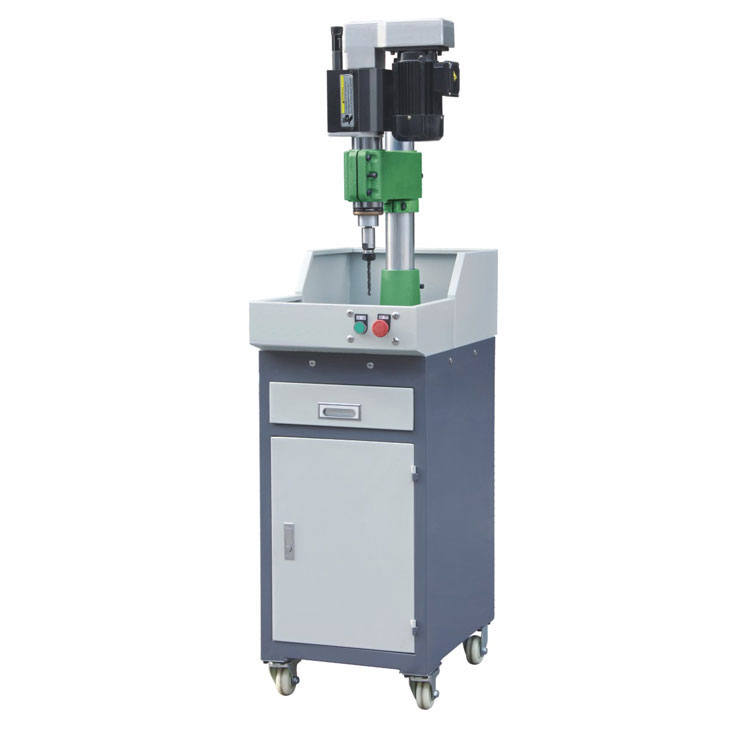

Zs4 Bench Pneumatic Drilling Machine

Functional features:

ZS4 pneumatic drilling machine, beautiful appearance, compact structure, with a pulley at the bottom, can be placed at will. The circulating cooling system reduces the temperature of the bit and extends the service life of the bit. This equipment has the characteristics of high precision, high efficiency and high degree of automation, and one person can operate 2-3 machines at the same time, which can improve the production efficiency of customers.

ZS4 bench pneumatic drilling machine reference data

Model	ZS-S3-80L	ZS-S3-100L	ZS-S3-150L
Machine Size	600×650×1800	600×650×1800	600×650×2000
Effective Size Of Table	230×230	230×230	230×230
Column Diameter	Φ74	Φ74	Φ74
Shaft Diameter	Φ50	Φ50	Φ50
Spindle Taper	JT6	JT6	JT6
Spindle Runout	≤0.02mm	≤0.02mm	≤0.02mm
Distance From Spindle Center Of Column End Face	180mm	180mm	180mm
Principal Axis Stroke	80mm	100mm	150mm
Spindle Speed	Optional	Optional	Optional
Motor Power	0.75Kw	1.1Kw/1.5Kw	1.1Kw/1.5Kw
Maximum Hole Diameter	S45C/Φ10	S45C/Φ13	S45C/Φ13
Standard Work Pressure	0.5MPa	0.5MPa	0.5MPa
Gross Weight	160Kg	170Kg	180Kg
