Bolele Tower Eight Axis

As a professional Bolele Tower Eight Axis manufacture, you can rest assured to buy Bolele Tower Eight Axis from our factory and YueLi will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

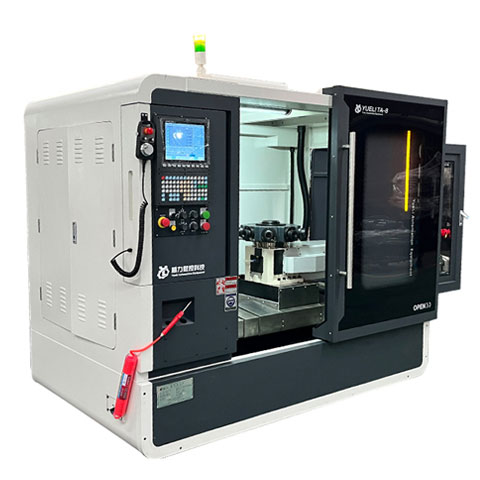

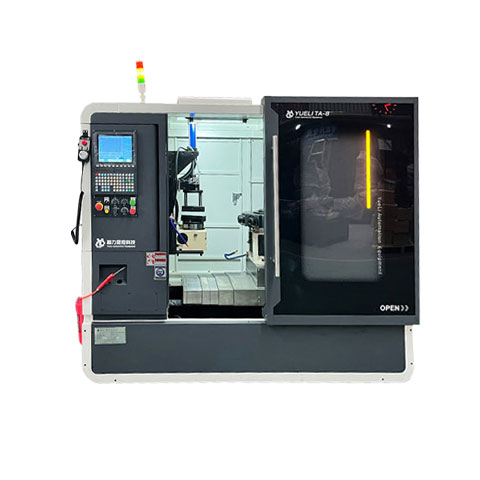

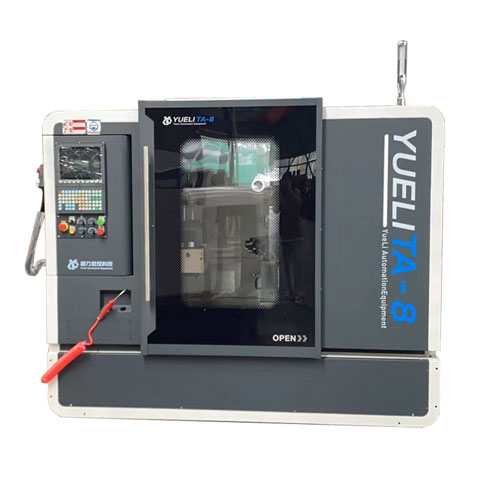

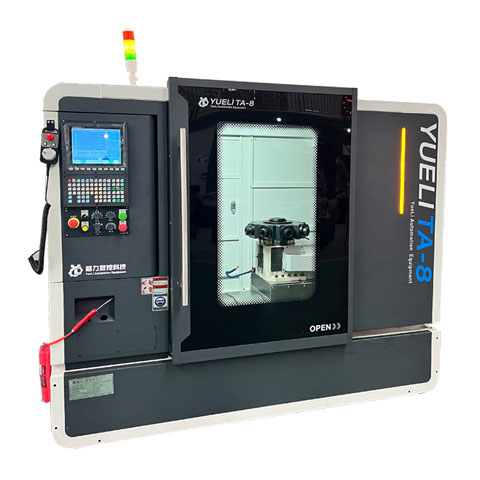

Horizontal turret eight-axis TA-8technical parameters

Main characteristics:

YueLi is one of the famous China Bolele Tower Eight Axis manufacturers and suppliers. Our factory specializes in manufacturing of Bolele Tower Eight Axis. Welcome to buy Bolele Tower Eight Axis from us. Every request from customers is being replied within 24 hours.

1.Turret type power head, ER40 connection method, with 5.5 spindle servo.It can be used for heavy cutting.

2.Three-axis high-speed displacement of 48m/min, fast speed, saving processing time.

3.Low inertia spindle design, high stability.

4.The tool change time is 0.5 seconds, and it is equipped with a cam fourth axis, which can process parts on different planes

No.	Name	Unit	Specification(mm)	Remark
1	Max stroke of X axis	mm	450
2	Max travel of Y axis	mm	500
3	Max travel of Z axis	mm	300
5	Fast moving speed of X/Y/Z	m/min	48
6	Repeatability positioning accuracy of X/Y/Z	mm	0.008
7	Rotary Turret	axis	8/12
8	Servo spindle motor power	KW	5.5
9	Spindle revolutions	rpm	0-3000
10	Spindle interface		ER40
11	Drilling capacity(copper) through hole	mm	Ф60
12	Max tapping(Copper)	mm	50X3
13	Spindle turret tool change time		0.8秒/180°
14	Tool change servo motor	W	750
15	Work surface size mm		300*300
16	Rotate the fourth axis		YT200R
17	Dimension:LxWxH	MMMMMM	2300×1600X1900
18	Net weight		3500KG
