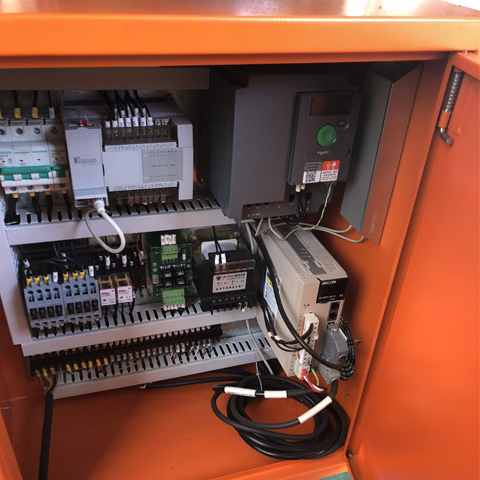

1.PLC control program control; Touch screen interface friendly dialogue, intuitive programming easy to operate. Ordinary people can quickly learn
2.Drilling spindle 1.2kW servo motor feed, tapping spindle by guide screw feed, with 4kW inverter, spindle stepless speed regulation
NO. |
Item Name |
ZSK4132×2 |
ZSK4150×2 |
1 |
X axis maximum stroke (pneumatic) |
160mm |
240mm |
2 |
Y axis maximum stroke (manual) |
120mm |
120mm |
3 |
Maximum stroke of drilling spindle |
100mm |
110mm |
4 |
Maximum stroke of tapping spindle |
80mm |
80mm |
5 |
The spindle spacing |
150mm |
240mm |
6 |
Spacing between spindle end face and worktable |
260/580mm |
240/580mm |
7 |
Maximum bore diameter |
Ф32 |
Ф50 |
8 |
Maximum tapping diameter |
Ф32 |
Ф50 |
9 |
Z2, Z1 shaft speed |
0-1400r/min |
0-1400r/min |
10 |
Spindle motor power |
3KW/4P |
4KW/4P |
11 |
Outside size: length × width × height |
1200×610×1500mm |
1400×940×1800mm |
12 |
Machine net weight |
750KG |
1200KG |
