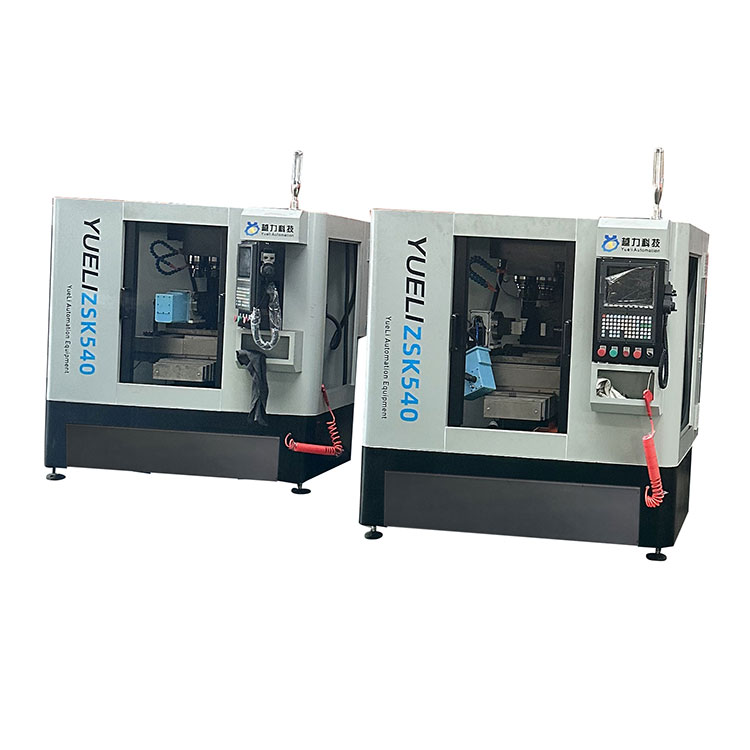

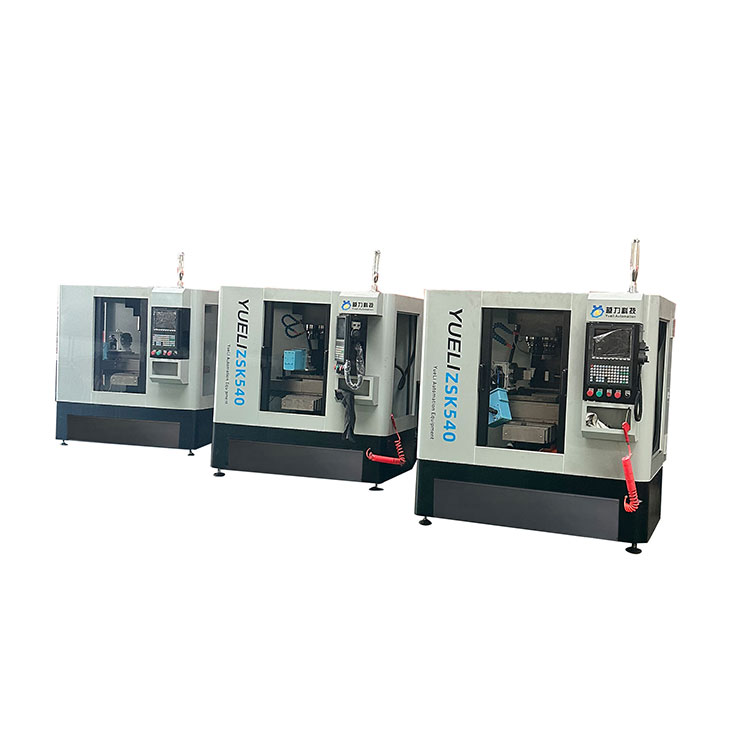

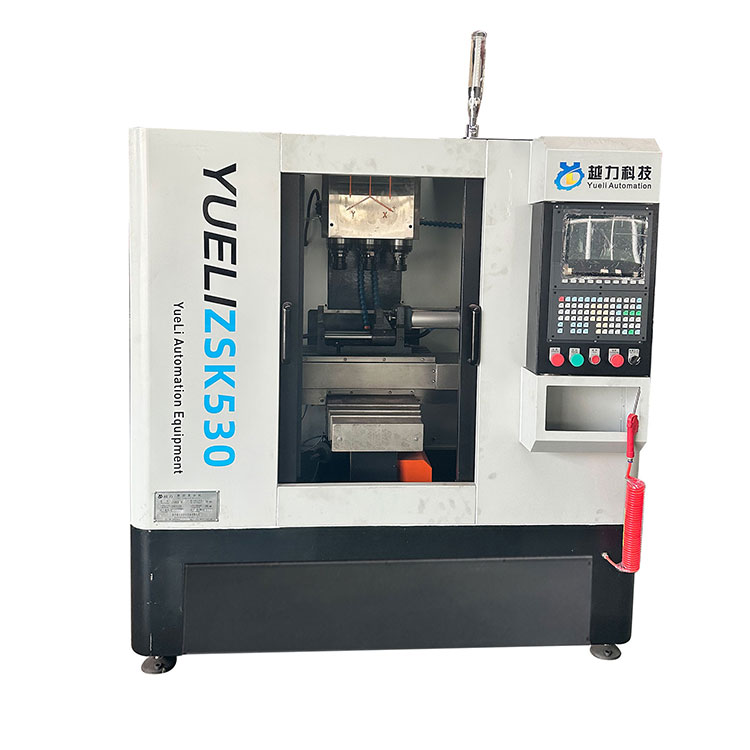

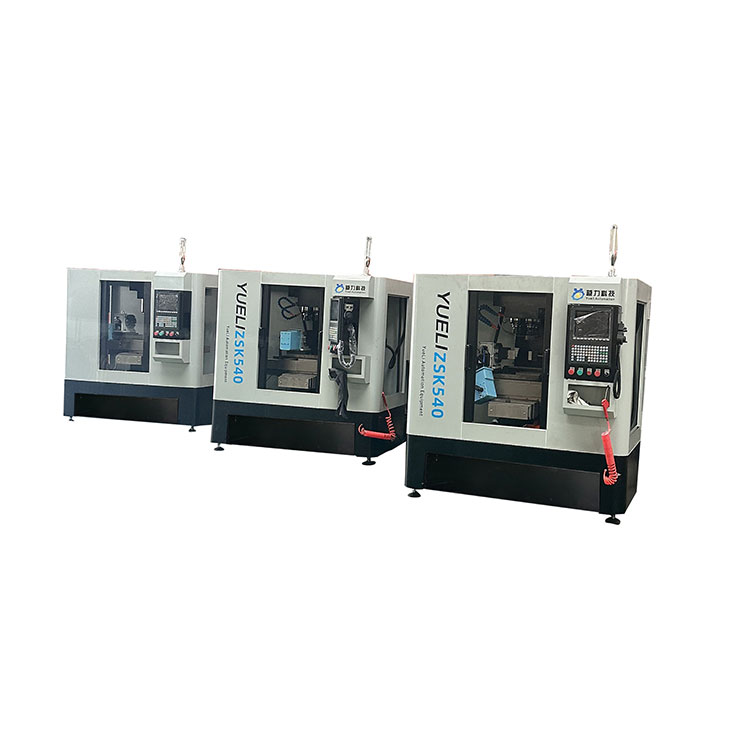

Vertical Three-Axis Drilling Tapping Machining Center (for valves, plumbing, showers)

1. HUST CNC system; touch screen human-machine interface, friendly dialogue, intuitive programming and easy operation. Ordinary people can learn it quickly.

2. The four-axis CNC functions are: all four axes can drill, tap, mill, and silver the ball screw feed. It is equipped with a 5.5KW servo main motor to realize the rigid tapping of the system. It comes with a frequency converter and can be stepless. Speed regulation also ensures processing accuracy.

Function overview:

1. HUST CNC system; touch screen human-machine interface, friendly dialogue, intuitive programming and easy operation. Ordinary people can learn it quickly.

2. The four-axis CNC functions are: all four axes can drill, tap, mill, and silver the ball screw feed. It is equipped with a 5.5KW servo main motor to realize the rigid tapping of the system. It comes with a frequency converter and can be stepless. Speed regulation also ensures processing accuracy.

3. Pneumatic components imported from South Korea.

4. The workbench and middle support are equipped with silver roller wire gauges and roller screws to achieve heavy-duty cutting.

5. Digitally controlled positioning, high repeatability positioning accuracy and fast tool adjustment speed.

6. The operation is convenient and fast, allowing one person to have multiple machines, greatly reducing labor costs and labor intensity.

7. Equipped with a fully enclosed protective cover to keep the workshop clean and tidy

Mechanical parameters：

Processing product display:

Production process:

1 Cast iron has been refurbished at high temperatures and aged for more than six months.

2 Rigorous assembly process (line rail assembly, screw assembly, bearing assembly, etc.)

3   Exquisite scraping technology (motor base scraping, spindle end face scraping, column mounting surface scraping).

4、  Scientific production and quality control system with full traceability.

Quality assurance

1. When performing pitch error detection, the straightness of the linear guide rail in the xx and yy directions can be detected at the same time to ensure the processing and assembly accuracy of each machine tool component. The actual positioning accuracy and repetitive positioning accuracy of the machine tool were measured.

2. The whole machine detects the verticality of the spindle and the accuracy of the working plane, and it is required to be within 0.03mm.

3. The whole machine detects the perpendicularity between the z-axis guide rail and the work, and it is required to ensure that it is within 0.03mm.

4 The whole machine detects the verticality of the xy-axis guide rail, and the accuracy is required to be within 0.01mm.

Application areas

It is suitable for processing small and medium-sized batches of complex parts such as small and medium-sized boxes, plates, plates, valves, shells, molds, etc. It is widely used in precision parts, precision molds, 5G products, hardware, auto parts, and medical equipment. industry.

our service:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.

7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

our company：

Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.

Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.

We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.

In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.
