Multi -site drilling

YueLi is a professional Multi -site drillingmanufacturers and suppliers in China. If you interested in Multi -site drilling products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

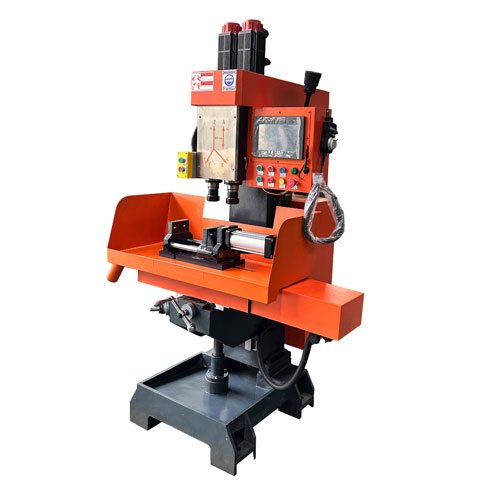

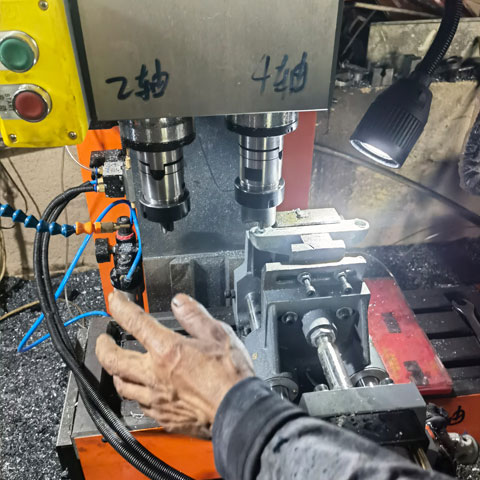

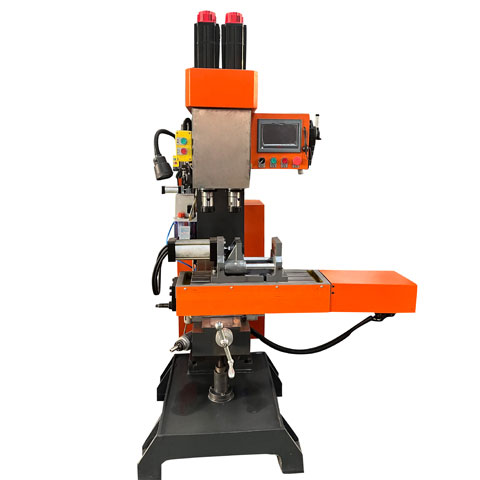

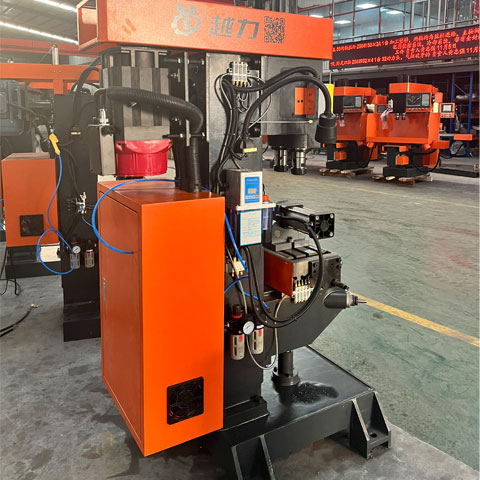

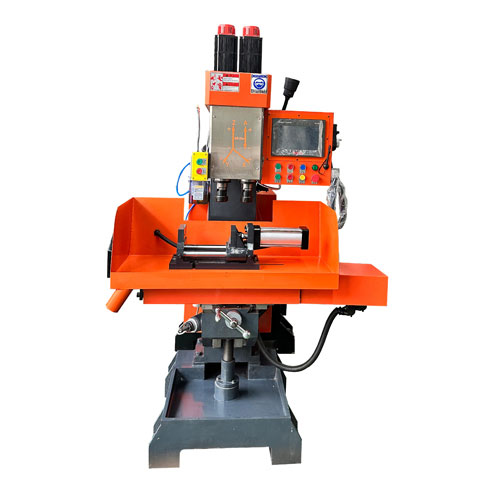

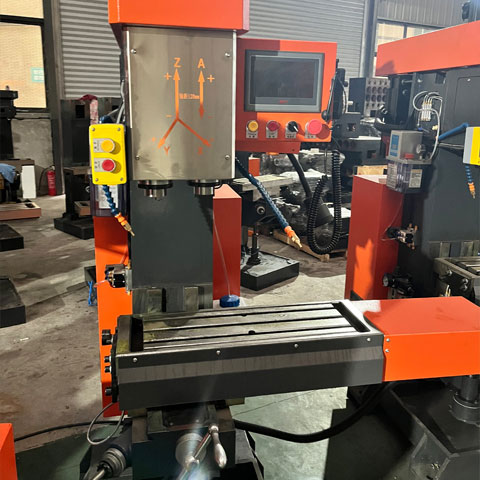

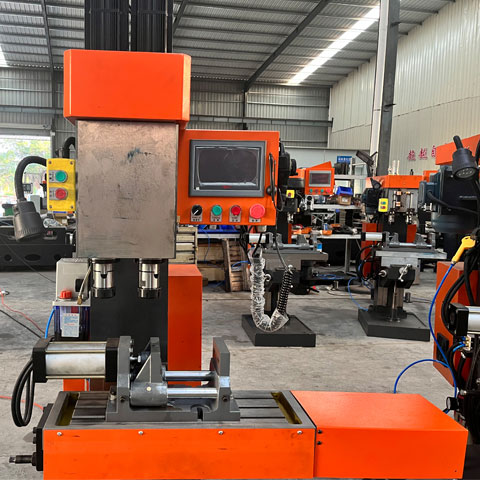

Description and pictures of automatic equipment

Factory Directly Supply Quality Multi -site drilling made in China. YueLi is Multi -site drilling manufacturer and supplier in China.

1, Sunikon CNC system, touch screen human-machine interface friendly dialogue, intuitive programming easy to operate. Ordinary people can learn quickly.

2, two axis CNC functions are: two axes can be drilled, tapping, milling, silver ball screw feed, with 5.5KW servo main motor to achieve the system of steel tapping, with inverter, can be stepless speed regulation, but also to ensure the accuracy of processing

3, the table is equipped with silver roller wire gauge and screw, digital positioning, repeated positioning high

4, digital control positioning, repeated positioning accuracy, fast tool adjustment speed.

5, manual button type can be free to open the mold. The start button is invalid if the mold is not closed, and the opening and closing button is invalid during the processing, which ensures the safety of production.

6, equipped with workbench simple cover, keep the workshop clean

Equipment technical parameter

Serial number	Parameter name	Name specification	32 Double axis rail
			ZSK 4132X2C
1	X-axis maximum travel (lead screw) mm		320mm
2	Y-axis maximum travel (manual) mm		120mm
3	Spindle sleeve diameter mm		86mm
4	Spindle taper		NT30
5	The maximum stroke of the drilling spindle is mm		100mm
6	Maximum stroke of tapping spindle mm		100mm
7	Spindle spacing mm		120mm
8	Spindle end face to work surface mm		310/480mm
9	Maximum drilling diameter mm		32mm
10	Maximum tapping diameter mm		32mm
11	Spindle speed RPM		3000r/min
12	Spindle motor power KW		5.5kw
13	Overall dimensions LWH:		110011001900
14	Net weight of machine tool KG		650KG

ZSK4132×2C Main configuration

Serial number	Name	Disposition	Quantity	Remark
1	Numerical control system	Sunikon	1 set
2	Servo motor	Sunikon	3 set	2 lock motors
3	Spindle servo	Sunikon	1 set	5.5kw
4	Electronic control system	National standard	1 Set
6	Lead screw	Shanghai Yin	2 Root	Screw pitch 10mm
8	Line rail	Shanghai Yin	1

Equipment price

NO.	Name	Model/Specification	Quantity	Unit price	Amount	Remark
1	Numerical control compounding machine	ZSK4132×2C	1	34000.00	34000.00

Additional instructions

The above prices do not include tax and freight.

Payment method: 30% deposit, pay off the balance before delivery

3, delivery time: from the date of receipt of deposit, delivery within 15 working days.

4, after-sales service: the whole machine warranty for one year, man-made damage is discussed!
