      CNC Multiple Eight Spindle Drilling Tapping Turret Milling Machine

      YueLi is CNC Multiple Eight Spindle Drilling Tapping Turret Milling Machine manufacturers and suppliers in China who can wholesale CNC Multiple Eight Spindle Drilling Tapping Turret Milling Machine, we can provide professional service and better price for you.

      Send Inquiry

      Product Description

      Ertical Tower Drilling And Tapping Machine Zsk-580

      Welcome to buy CNC Multiple Eight Spindle Drilling Tapping Turret Milling Machine from us, every request from customers is being replied within 24 hours. YueLi is the professional manufacturer, we would like to provide you CNC Multiple Eight Spindle Drilling Tapping Turret Milling Machine and we will offer you the best after-sale service and timely delivery.

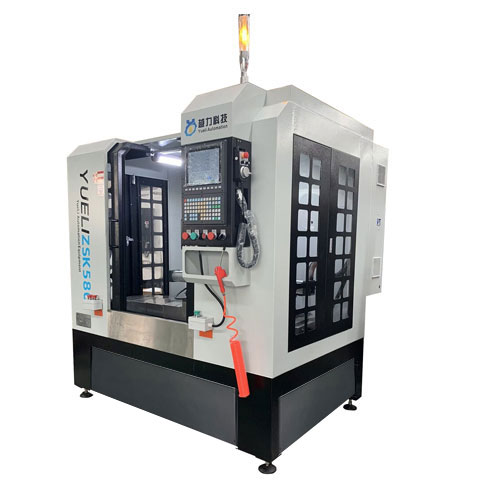

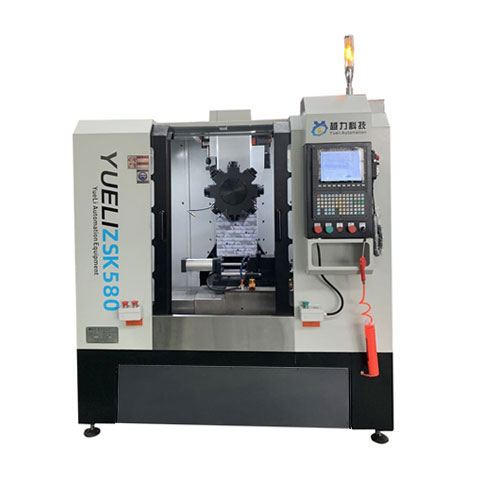

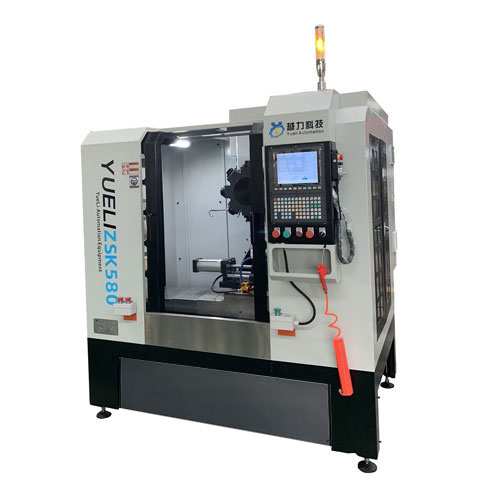

      ZSK580 tool tower drilling and tapping center has high speed rigid tapping, high precision and high efficiency.

      1. The spindle motor and spindle are driven directly to reduce the error of high-speed tapping, and the characteristics of high output force can be greatly played in processing and heavy cutting.

      2, mechanical tool change, greatly increase the speed of tool change, Taiwan Yitu numerical control system, to achieve the synchronization of tool change and workpiece positioning

      3, the machine tool large tilt chip removal Angle, automatic chip rolling effectively improve the chip removal effect, while the machine quickly flushed chips, and speed up the cutting fluid reflux speed;

      4, by loading the high-speed PLC engine, improve the response speed, shorten the cycle, optimize the processing details, improve the smoothness of the feed, and improve the processing edge/surface effect without arranging subsequent processes.


      1. Technical parameters


      Serial number

      Name

      Size (mm)

      Remark

      1

      X axis maximum travel (lead screw) mm

      700



      2

      Y-axis maximum travel (lead screw) mm

      500



      3

      Z-axis maximum travel mm

      340



      4

      X/Y/Z axis maximum moving speed m/min

      30



      5

      X/Y/Z axis repeated positioning accuracy

      0.008mm



      6

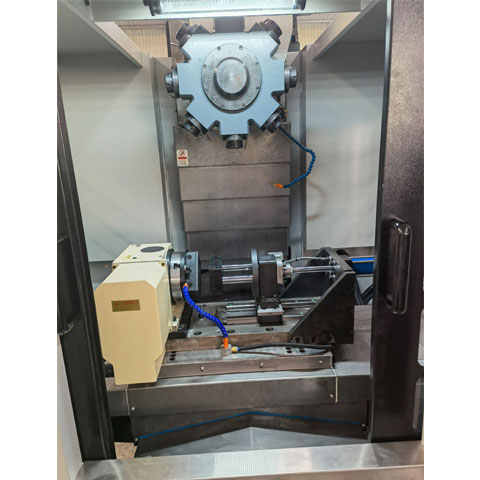

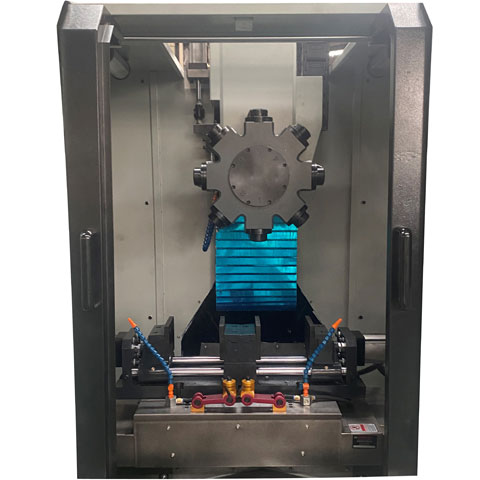

      Rotary knife tower

      八轴



      7

      Servo spindle motor power

      5.5KW



      8

      Spindle revolution

      0-6000rpm



      9

      Spindle joint

      ER40



      10

      Drilling capacity (copper parts) through holes

      Ф60mm



      11

      Maximum tapping

      50X3mm



      12

      Spindle turret tool change time

      0.8秒/180°



      13

      Tool changing machine

      750W



      15

      Turret maximum diameter tool

      120mm



      16

      Table size mm

      600×420



      17

      T-slot dimensions (number - slot width × spacing)

      3-18×100



      18

      Dimensions: length × width × height

      2100×2100X1900





      Net weight of machine tool KG

      3500KG
