The excellent performance of the LA series is the same as ever, and it is efficient and easy to use. It is especially important that in the production of the environment of protecting the environment, efficiency · cleanliness, simple operation, energy consumption, durability, we let each detail create the greatest benefits.
The excellent performance of the LA series is the same as ever, and it is efficient and easy to use. It is especially important that in the production of the environment of protecting the environment, efficiency · cleanliness, simple operation, energy consumption, durability, we let each detail create the greatest benefits. Through all -round services, your products have the greatest effect throughout the life cycle. Adhering to the rich experience of 30 years, introducing advanced technology in the world, and developing innovative solutions that can minimize your resource consumption.

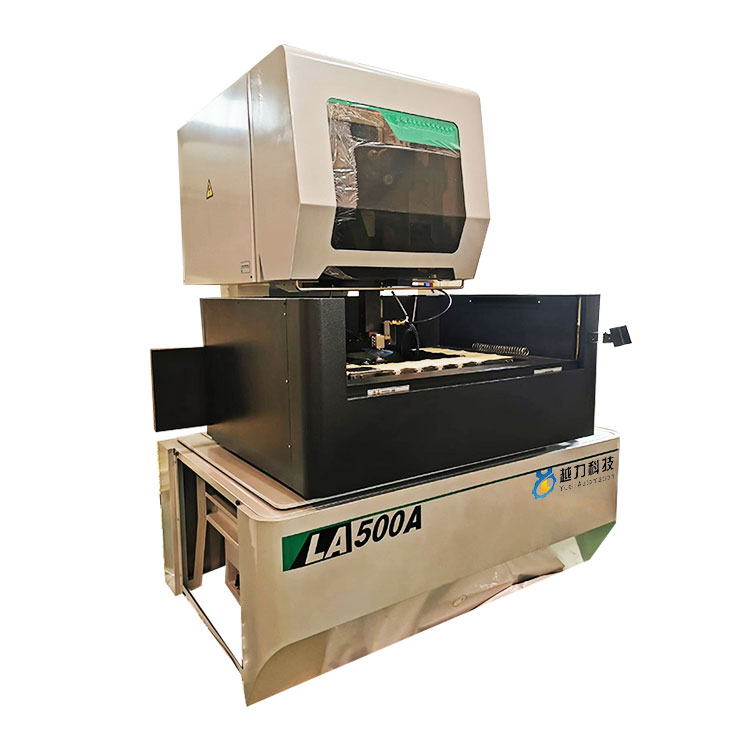

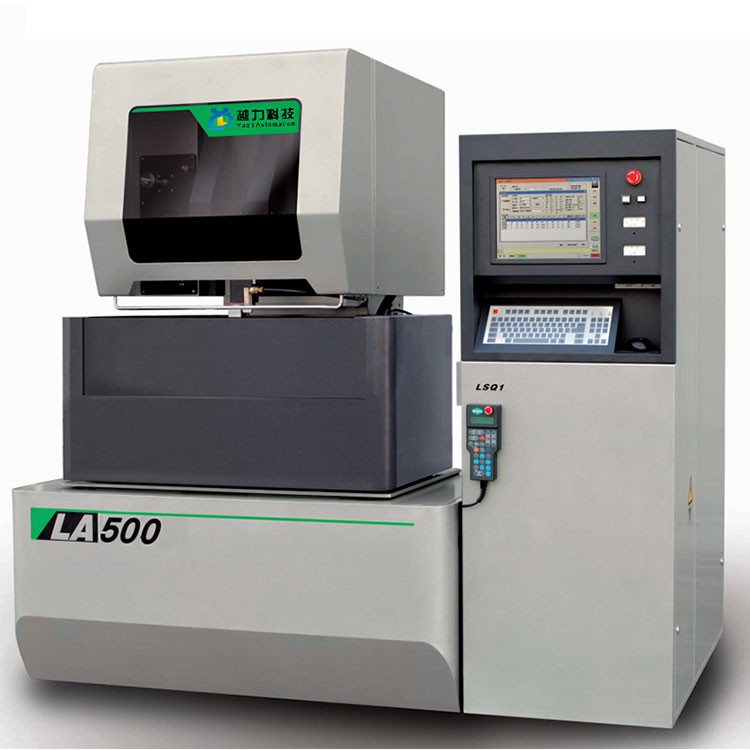

Machine tool model specifications and performance characteristics:
Basic function | Machine model | LA500 |
Working platform size (MM) | 745X510 | |
Workbether's itinerary (MM) | 500X350 | |
Workbench load (KG) | 700/800 (Soaking in water) | |
Maximum cut thickness (MM) | 260/180 (Soaking in water) | |
Subdivy stroke (mm) | 270 | |
Processing accuracy | According to the standard of GB/T 7926-2005 | |
Smoothness | ≤0.4 μm (straight line) | |
Performance characteristics of machine tools | The maximum taper of cutting workpiece | ± 15 ° /100 mm |
Bed cast | Resin sand | |

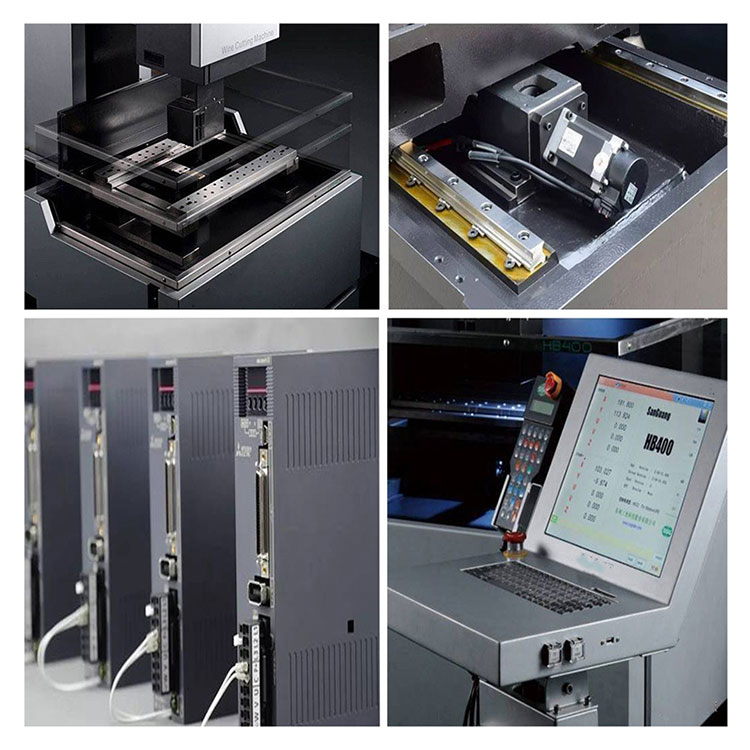

Workbench design | The full support design, the XY axis supports the spacing of the guide track, good stability, and strong carrying capacity. | |
Maximum cutting efficiency | ≥300 square millimeter / minute (straight line) | |
Machine tool consumption power | ≤1.5KW | |
Electrode wire diameter | Φ0.15 ~ φ0.0.3mm | |
Drive method | Servo driver | |
Control method | Fully closed ring hole control | |
lubricating | Automatic multi -point oil pump | |
Machine tablet size | 2700x2500mm | |
Host weight | 2700kg | |
Processing method | Soaking/injection processing | |
Screw, guide rail | Screw | THK |
guide | THK | |
operating system | WinXP system and LCD touch screen | |
Running speed M/min | ≤12 | |
Electrical wire tension (KGF) | 0.3-2.5 | |
Work solution | capacity | 440 |
Water heater | De -ion exchange resin | |
Filtering | Replaceable paper core filter | |
Filter element quantity | 2 | |
LCD touch screen display | Standard configuration | |
Power supply | 10kva | |
Automatic wireless wire system | Optional |
