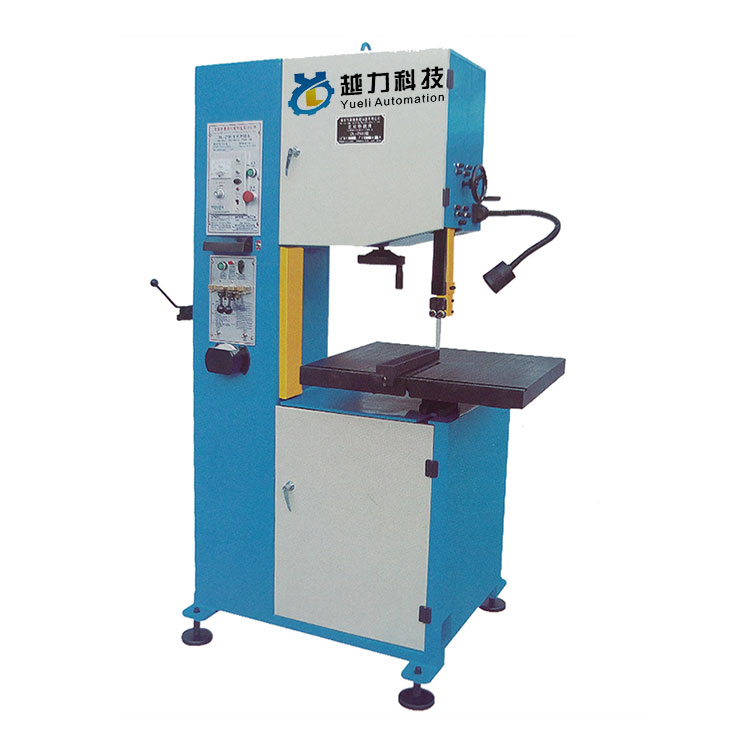

Welcome to wholesale Vertical Band Sawing Machine from us, every request from customers is being replied within 24 hours. YueLi is the professional manufacturer, we would like to provide you Vertical Band Sawing Machine and we will offer you the best after-sale service and timely delivery.
Machine type | 5-360 | S-400 | S-500 | 5-600 | S-1000 |
Maximum cutting capacity (mm) | 350 | 400 | 505 | 590 | 1000 |
Maximum working height (mm) | 230 | 320 | 320 | 320 | 320 |
Bed size (mm) | 430x500 | 500x600 | 580x700 | 580x700 | 500x600x2 |
Blade length (mm) | 2780 | 3360 | 3930 | 4300 | 4700 |
Blade width (mm) | 3~13 | 3-16 | 5-19 | 5-19 | 3-16 |
Table tilt Angle | 15 degrees around 10 degrees | 15 degrees around 10 degrees | 15 degrees around 10 degrees | 15 degrees around 10 degrees | Left side fixed before and after 10° about 15 |
Main motor power 4P(HP) | 1 | 3.2 | 3.2 | 3.2 | 3.2 |
Main motor power 8P(HP) | 2 | 2 | 2 | 2 | |
Transmission Power (HP) | 1 | 1 | 1 | 1 | 1 |
Saw band speed S0HZ(m/min) |
31.51.76.127 |
27,43.65.108 53,85,127.212 |
34.54.81.134 66.106,159.265 |
40,64.95.158 78,125.188.314 |
27,43.65.108 53.85,127.212 |
Welding power (kva) | 1.2 | 2.0 | 5.0 | 5.0 | 2.0 |
Welding capacity (mm) | 3-13 | 3~16 | 5~19 | 5-19 | 3~16 |
Machine weight (kg) | ~270 | ~430 | ~600 | ~650 | ~850 |
Mechanical dimensions (L x W x H mm) | 930x660x1590 | 1130x850x1830 | 1280x970x2020 | 1380x970x2130 | 2140x910x1880 |
