Product Description

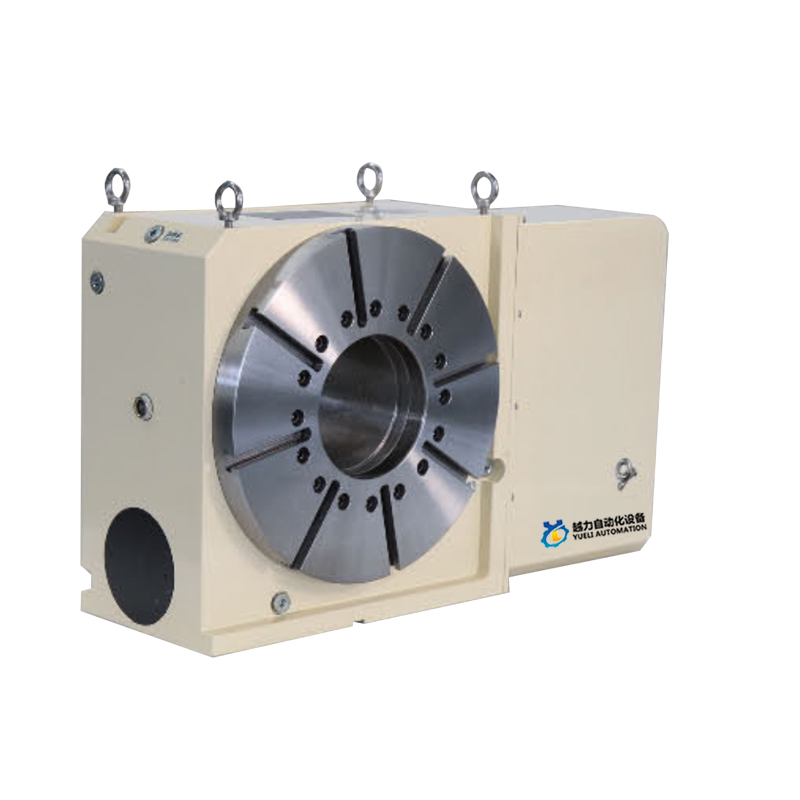

Yueli 400 four-axis CAM turntable

CAM type zero back backlash CNC rotation

Factory Direct Sale Quality 400 Four-axis CAM Turntable Manufacturers and Suppliers. YueLi is 400 Four-axis CAM Turntable manufacturer and supplier in China.

Cam-roller transmission structure is adopted inside the product.

CAM shaft needle roller bearing precompression no gap rolling drive.

No sliding friction, continuously maintain no gap characteristics.

High accuracy of forward and reverse motion repetition.

High rigidity, high efficiency.

Does not cause poor accuracy due to temperature rise.

No need for regular calibration and adjustment.

Working principle and characteristics of cam-type CNC turntable

Principle of preloading

Compared with the traditional worm gear type NC turntable, the grating CAM type NC turntable has higher precision

Operating characteristics of degree, high speed, zero back clearance and heavy load. Input axial cams

The needle roller bearing on the output shaft turret of the constant speed driving curved surface is precompressed rolling contact transmission,

To achieve zero back backlash and higher speed operation, due to the rolling transmission almost zero

Friction movement, so that the mechanism can maintain no backbacklash transmission, high precision positioning, and no need

Regular calibration and adjustment work should be done. Lattice CAM type CNC turntable, Han out of the shaft use

The large bearing is arranged on the round outer wall of the shaft, and the two ends of the CAM input shaft are set with double bearings.

It also enhances the stability and load capacity of the turntable, and can better cope with the processingHigh speed and heavy cutting force, improve machining accuracy, efficiency and reduce costs.

Comparison of mechanism characteristics of CAM type zero back backlash NC turntable

No.	Item	Roller CAM Driyer 1M	Worm Gear Type
1	Drive type	Ccw Output Angle	- CCWa Outout Ang 360
2	Drive status	Rolling contact	Slide contact
3	Material:Hardness of the contacpa	Cam shaft:Hardening steel; HRC60	Worm shaft: Hardening steel; HRC60
3	Material:Hardness of the contacpa	Cam followers;Bearing steel; HRC60	Worm gear; Phosphor bronze; HB90
4	Preload	○YES	X N0
5	Transmission efficiency	〇Higher	△Lower

Positioningtime 90° (Example)

	Item N0.	Competltor
	Release spindle clamping
	Acceleraion
	Linear rotary movement	Linearrotarymovement
	Decelerate	Decelerate
	Machining release	Machining release
	Clamp spindle	Clamp spindle
	Cycletime	Cycletime

Speed capacity	Rigidity

Durability	3 Roller Bearing

Yueli400 Reference data

CODE NO		UNIT	Yueli400
Table diameter		φmm	400
Center height		mm	255
Spindle hole		φmm	160
T slot width		mm	14
Guide key width		mm	18
Servo motor		FANUC	β22
Servo motor		MITSUBISH	HF302
Min increment			0.001°
Gear ratic			~1:60
Max.rotation speed(3000 rpm)		rpm	30
Output rate torque		kg/m	220
Hydraulic resource pneumatic/hydraulic		kg/m²	35
Output torque at brake		kg/m	220
Indexing accuracy		sec	15
Repeatability		sec	4
Product quality		kg	350
Allowable worweight	vertical	kg	200
	horizontal	kg	500
	vertical tailstock	kg	500
Allowableload	F	kgf-m	4000
		F*L kgf-m	280
		F*L kgf-m	250
