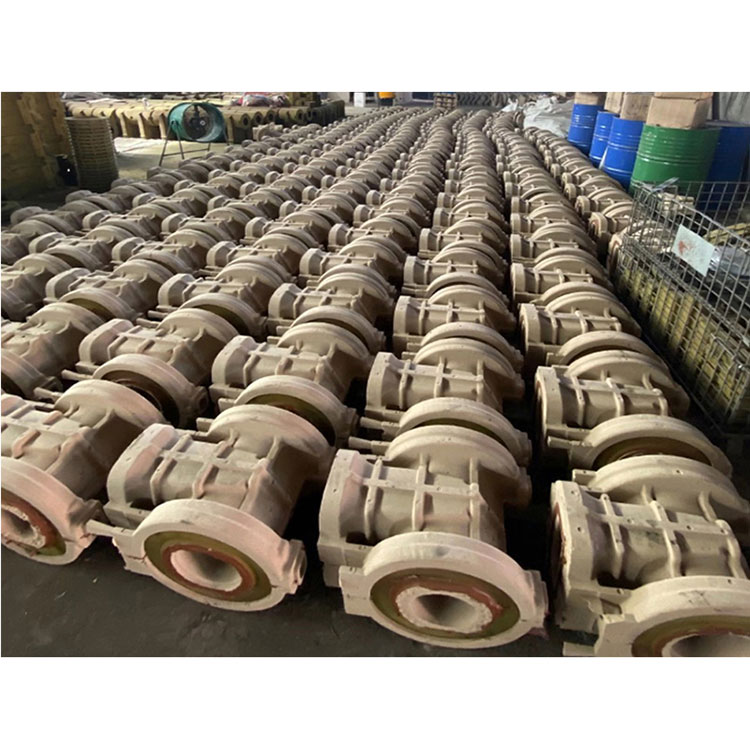

1. Especially suitable for spore 100#, 125#, 150#, 200#, gearbox, bearing seat, box, half pipe sand core batch efficient production;
1. Especially suitable for spore 100#, 125#, 150#, 200#, gearbox, bearing seat, box, half pipe sand core batch efficient production;
2. Mold without heating, high degree of automation, intelligent and efficient, good quality of sand core, low mold loss, long life; Reduce core cost and improve casting quality;
3. Our company can help customers design and produce molds, tailor the machine, the company test mold, customer acceptance, provide one-stop service.
|
content |
Z650L-25A |
Z860L-30A |
Z1080L-50A |
Maximum core weight (KG) |
30kg |
50kg |
80kg |
|
Max mold size (L x W x H) |
550x400x400 mm |
750x550x500 mm |
950x750x550 mm |
|
Table size |
600x400 mm |
800x600 mm |
1000x800 mm |
|
Indenter compresses cylinder stroke |
100 mm |
100 mm |
100 mm |
|
Stroke of closing cylinder |
400 mm |
400 mm |
450 mm |
|
Equipped with triethylamine generator |
YL-25A |
YL-30A |
YL-50A |
|
Equipment power |
5.5kw |
7.5kw |
1 1kw |
