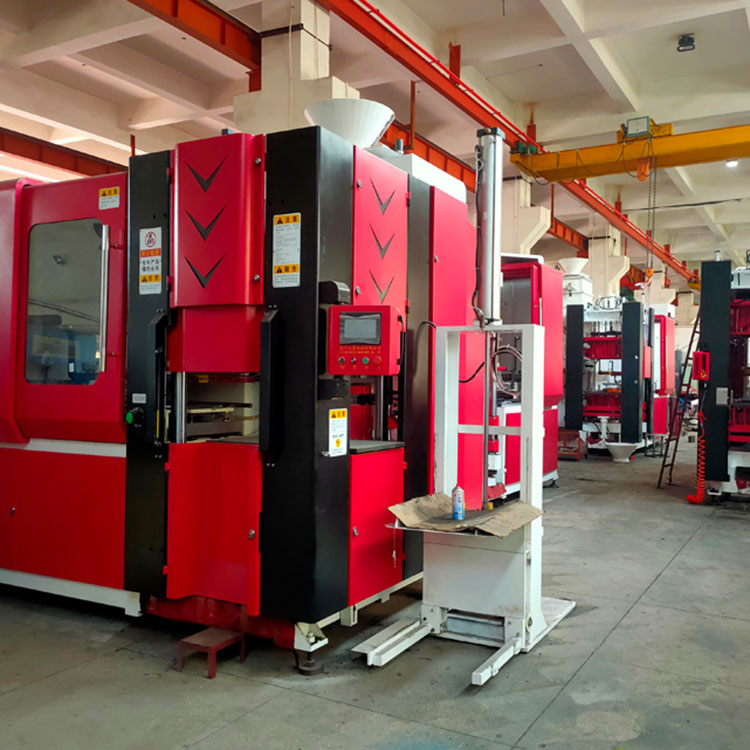

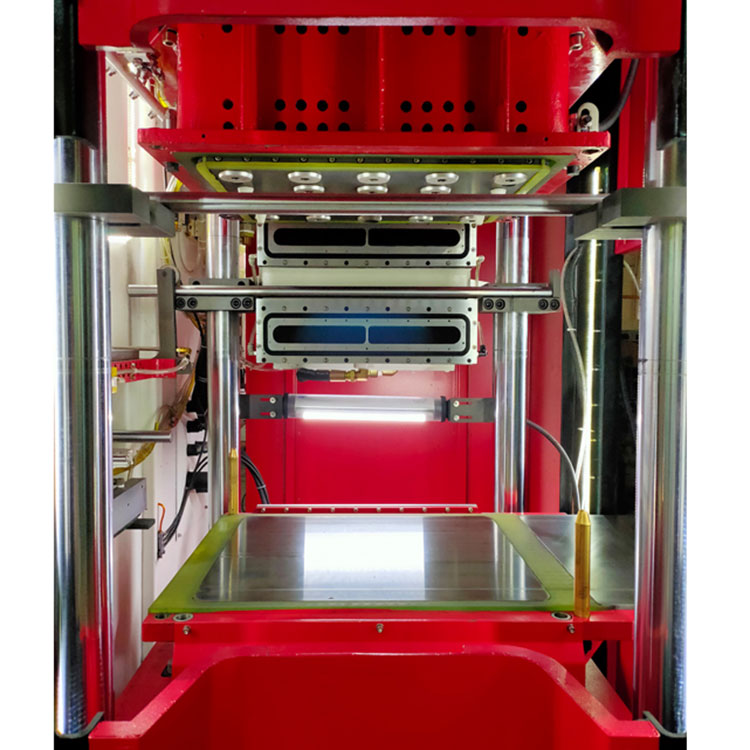

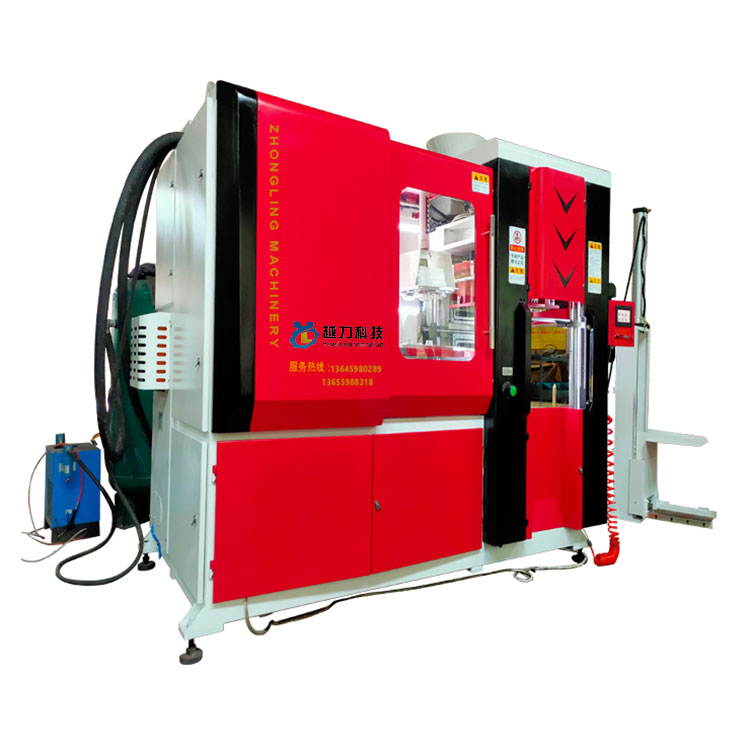

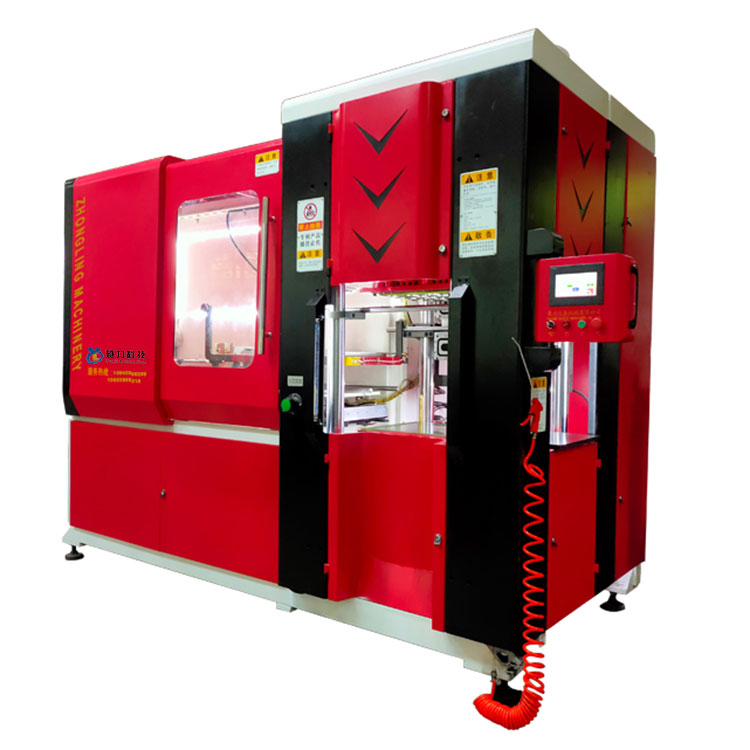

As the professional manufacturer, we would like to provide you Fully Automatic Modeling Machine. And we will offer you the best after-sale service and timely delivery.
You can rest assured to buy Fully Automatic Modeling Machine from YueLi factory and we will offer you the best after-sale service and timely delivery.
High configuration and stabllty,high degrea of automation, simple and convenient operation;

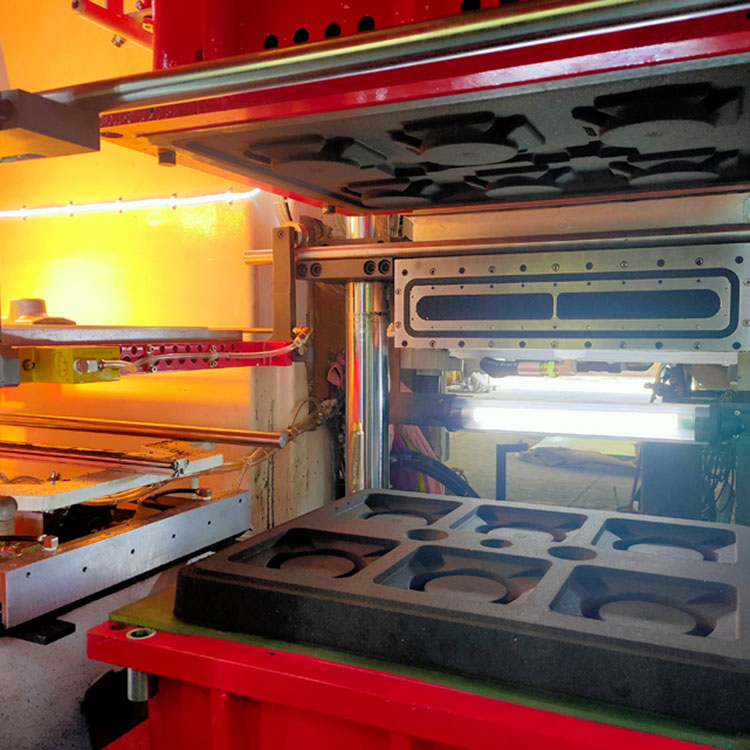

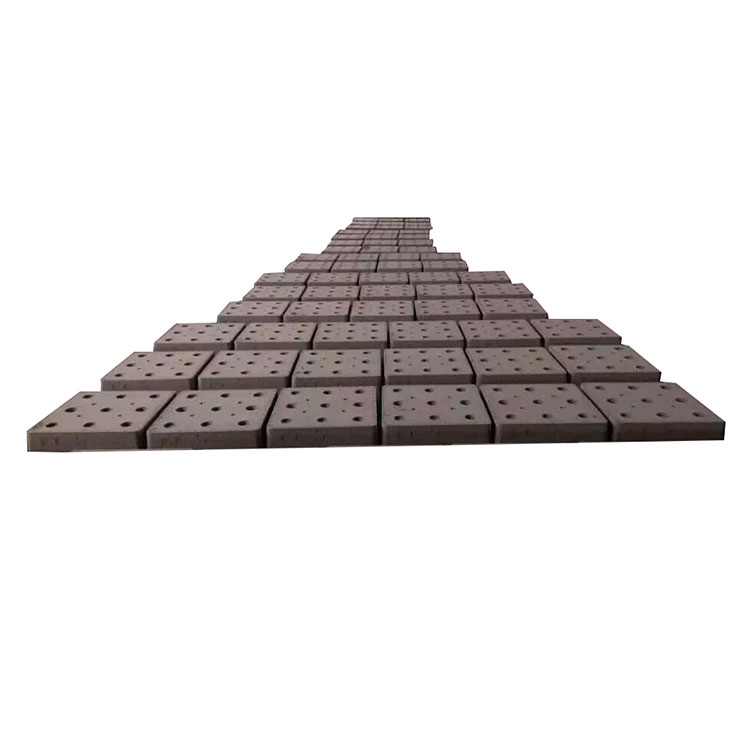

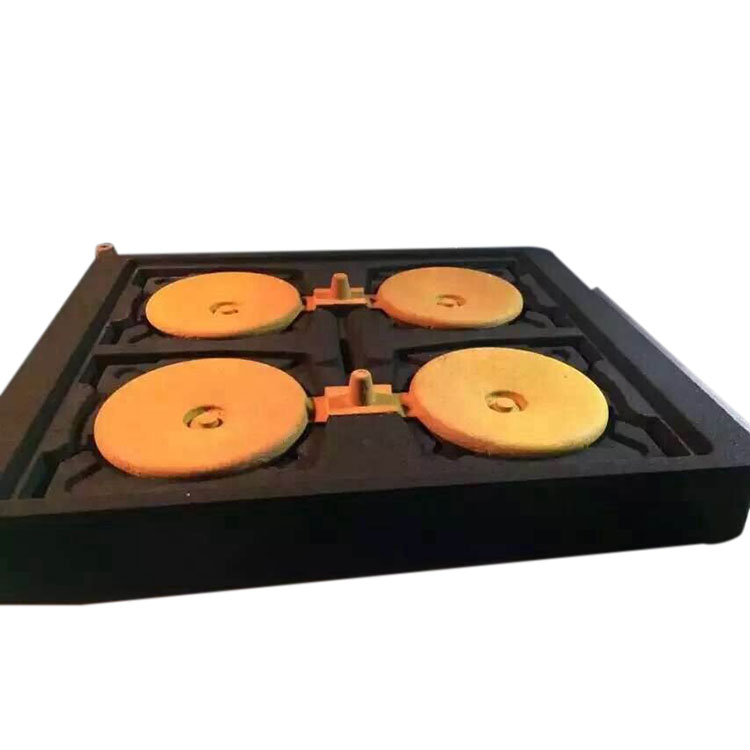

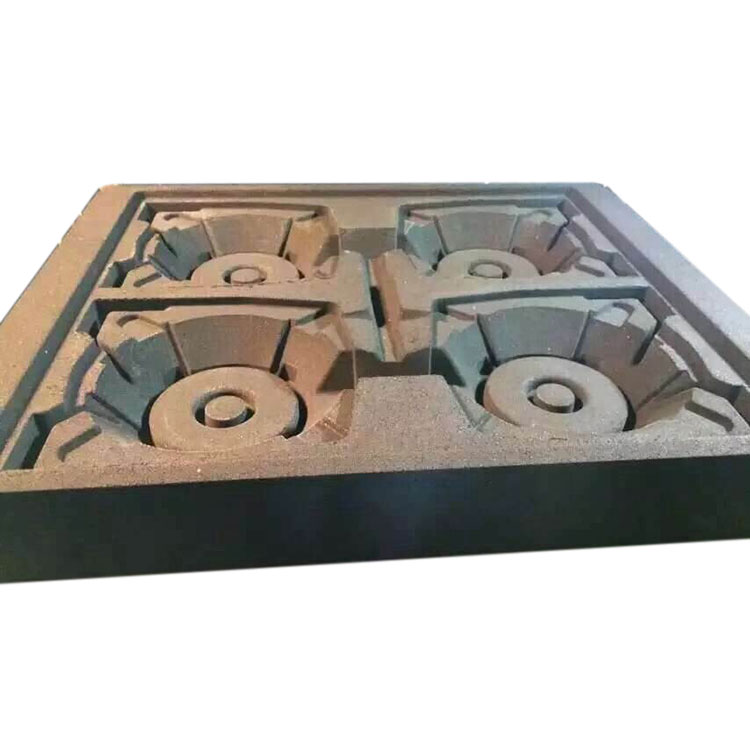

The sand mold is full and smooth, with uniform hardness and high yiald;
Servo hydraulic system,smooth,procise and smooth movement,
The optional lower box alides out the sand core to reduce the intenalty of work and is accurate and nafe:
We can hetp cuatomers design and manufacture malta,talored producta,teat in the company,custamer acceptance,prowide one-s
MAIN SPECIFICATIONS AND TECHNICAL PARAMETERS
Contents | ZL4050CR | ZL5161CR | ZL6080CR | ZL6570CR |
Sand Mould Siae | 400x500 mm | 510x610 mm | 600x800 mm | 650x700 mm |
Sand Mould Thickness | 上:80-150mm | 上120-220mm | 上120-220mm | 上120-220mm |
Moduing spad |
30a/mcldl (不下) |
36a/molol (不下芯) |
40a/molol (不下) |
40a/mool (不下) |
Sand Moiature | 2.5-3.5% | 2.5-3.5% | 2.5-3.5% | 2.5-3.5% |
Driaingmoda | 电+气+液 | 电+气+液 | 电+气+液 | 电+气+液 |
Uning stectic | Ac3B0V 50Hz | Ac380V 50Hz | Ac380V 50Hz | Ac3B0V 50Hz |
Equipmant power | 13.5 kw | 21 kw | 21 kw | 21 kw |
Net weight odf aquipment | 7100kg | 10000kg | 12000 kg | 12000kg |
Equpment dimanons | 3218x1850x2618 mm | 3950x1950x3650 mm | 4850x2660x3910 mm | 4850x2660x3910 mm |
