650L-25A Automatic Cold Box Core Shooting Machine

As a professional 650L-25A Automatic Cold Box Core Shooting Machine manufacture, you can rest assured to buy 650L-25A Automatic Cold Box Core Shooting Machine from our factory and YueLi will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

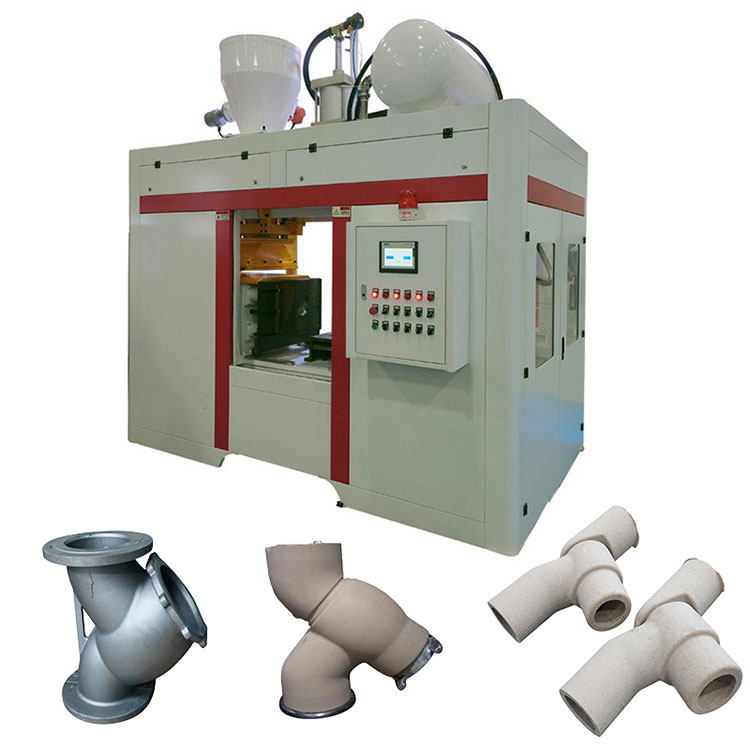

650L-25A Automatic Cold Box Core Shooting Machine

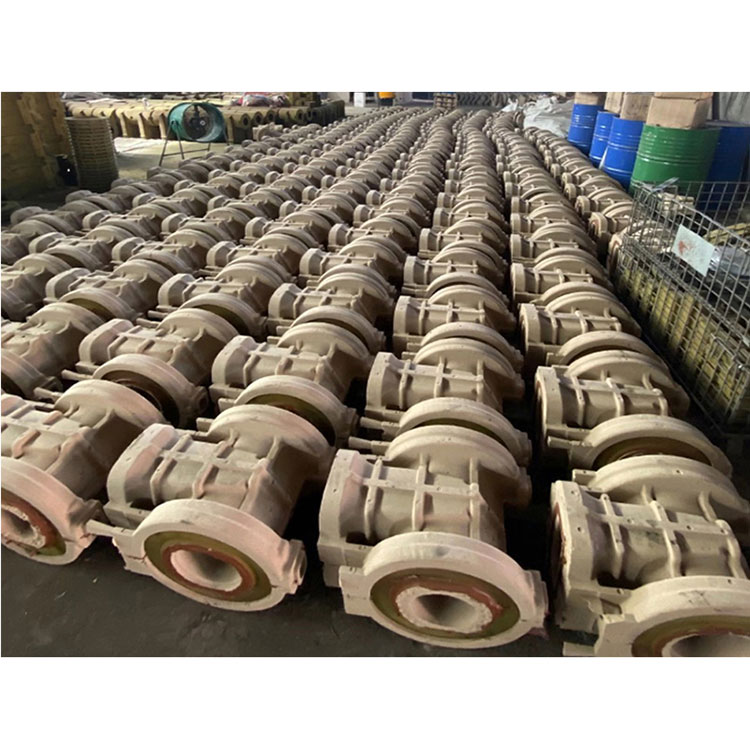

1. Especially suitable for spore 100#, 125#, 150#, 200#, gearbox, bearing seat, box, half pipe sand core batch efficient production;

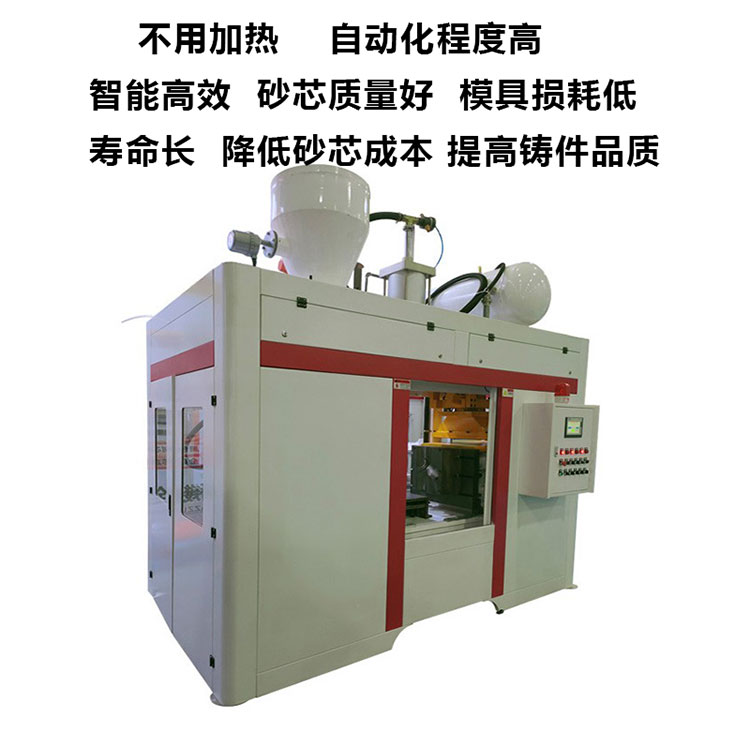

2. Mold without heating, high degree of automation, intelligent and efficient, good quality of sand core, low mold loss, long life; Reduce core cost and improve casting quality;

3. Our company can help customers design and produce molds, tailor the machine, the company test mold, customer acceptance, provide one-stop service.

Fully automatic vertical cold core box Core shooting machine	content	Z650L-25A	Z860L-30A	Z1080L-50A
	Maximum core weight (KG)	30kg	50kg	80kg
	Max mold size (L x W x H)	550x400x400 mm	750x550x500 mm	950x750x550 mm
	Table size	600x400 mm	800x600 mm	1000x800 mm
	Indenter compresses cylinder stroke	100 mm	100 mm	100 mm
	Stroke of closing cylinder	400 mm	400 mm	450 mm
	Equipped with triethylamine generator	YL-25A	YL-30A	YL-50A
	Equipment power	5.5kw	7.5kw	1 1kw
