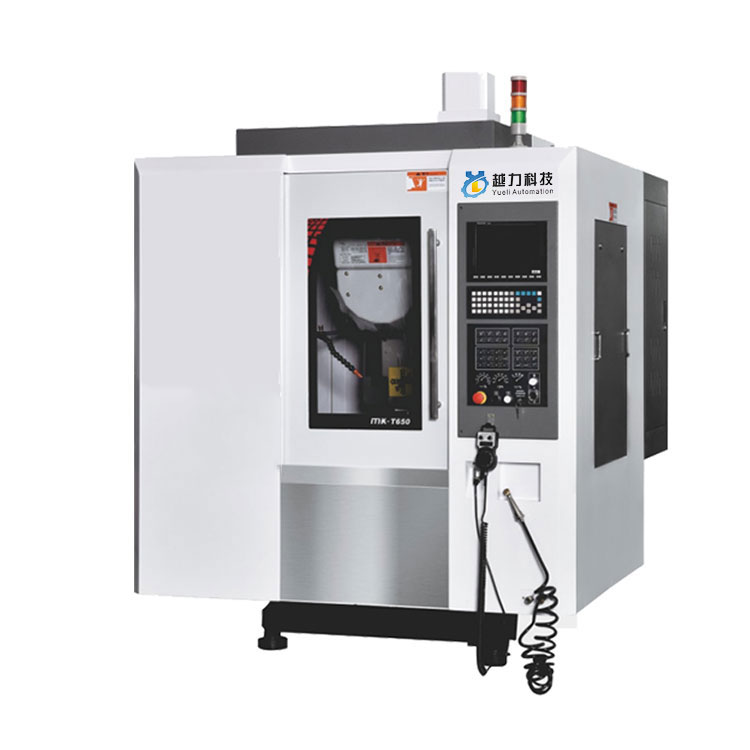

Five head carving and milling machine

YueLi is CNC Drilling And Tapping Center Machine Tools manufacturers and suppliers in China who can wholesale CNC Drilling And Tapping Center Machine Tools. We can provide professional service and better price for you. If you interested in CNC Drilling And Tapping Center Machine Tools products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Function Overview:

1. Specialized in processing small porous parts and products. It is suitable for processing mobile phone parts, communication equipment, aerospace, automobile locomotives, instruments and meters, light industry and textile, electronic appliances and machinery manufacturing, as well as copper, aluminum electrodes and other processing industries;

2. The main structure is made of high strength cast iron, and after stress relief annealing and natural aging treatment, the accuracy of the bed is durable and stable, and no deformation for a long time;

3. Adopt high precision straight-connected spindle to realize high-speed machining of workpiece; The use of oil temperature cooling machine system can reduce the temperature rise caused by high-speed rotation of the spindle, effectively improve the thermal extension of the spindle, and improve the machining accuracy;

4. Adopt clamping arm tool library to improve the tool changing speed and accuracy of the machine tool. The tool library capacity is 16 or 21 sets; The fuselage base adopts the rear inclined structure design, which is easy to clean the waste inside the machine tool;

5. The structural design of the high column increases the distance between the nose end of the main shaft and the working table, which is more suitable for the installation and application of the fourth shaft components and makes the processing area wider;

6. Track lubrication automatic oiler, intermittent timing quantitative control of oil injection, lasting lubrication of moving parts;

Mechanical parameters:

 5G Product display：

Process production：

1. The cast iron is reheated at high temperature and aged for more than six months.

2. Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.).

3. Exquisite scraping technology (motor base scraping, spindle end scraper, column installation surface scraping).

4. Scientific production, traceability of the whole process of quality control.

Quality Assurance

1 When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured.

2 The machine detects the verticality of the spindle and the accuracy of the working plane, which is required to ensure that it is within 0.01mm.

3 The whole machine detects the perpendicality between Z-axis guide rail and working, which is required to ensure that it is within 0.01mm.

4 The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.005mm.

Application field

Suitable for small and medium-sized box class, plate class, plate class, valve class, shell class, mold and other complex parts of a variety of small and medium-sized batch processing, widely used in precision parts, precision mold, 5G products, hardware, auto parts, medical equipment industry.
