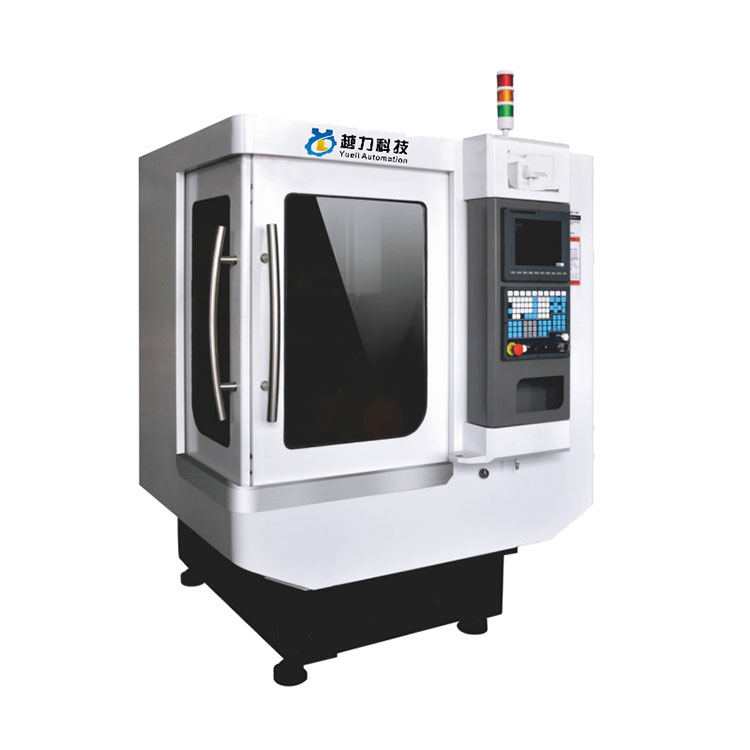

YL5-640 five-axis linkage jade engraving machine is a handicraft engraving machine specially designed for engraving complex three-dimensional ornaments: the bed base and columns are all cast in one piece, with good rigidity and stability. Equipped with imported servo systems and high-precision transmission components, it has high processing accuracy and stable operation. The system is integrated in design, easy to operate and powerful in function. The whole machine adopts precision sheet metal parts for full range protection, which makes the appearance more beautiful and more effectively maintains the environmental sanitation and personnel safety of the site. Suitable for processing three-dimensional models of portraits, animals, landscapes, etc.
It can be used to carve root carvings and complex models of various jade and stones. It is suitable for processing three-dimensional handicraft models such as portraits, animals, and landscapes.
Mechanical parameters |
unit |
MK5-640D |
XYZ work schedule |
mm |
600*380*350 |
A/B rotation angle |
mm |
0~360°/0~-120° |
Rotary table outer diameter |
mm |
160 |
Rotary table load-bearing |
KG |
20 |
Tool setter |
precision |
0.002mm |
Repeatability |
mm |
±0.003 |
positioning accuracy |
mm |
±0.005 |
XYZAB axis rapid feed |
m/min |
20/20/20/15/15 |
Spindle speed |
rpm |
3.2KW/24000 |
XYZAB axis motor power |
kw |
0.75/0.75/2.0/0.4/0.75 |
Lubrication system |
1.5L |
Fully automatic lubrication system |
Control System |
|
SYNTEC 210MA-E5 |
power supply |
V |
three phase 380V |
physical dimension |
mm |
1500*1800*2000 |
Weight (approximately) |
KG |
2200 |
1.Cast iron is reheated at high temperature and aged for more than six months
2.Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.)
3.Superb scraping technology (motor seat scraping, spindle end face scraping, column mounting surface scraping)
4.Scientific production, traceability of the whole process of the quality control system
1、When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured
2、The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.01mm
3、The verticality between Z-axis guide rail and working is required to be guaranteed within 0.01mm.
4、The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.005mm.
Suitable for small and medium-sized box class, plate class, plate class, valve class, shell class, mold and other complex parts of a variety of small and medium-sized batch processing, widely used in precision parts, precision mold, 5G products, hardware, auto parts, medical equipment industry.
Yueli Technology is a technology enterprise integrating R&D, sales and production,After years of hard work and development, the products include 5G terminal processing centers, drilling and tapping machines, five-head engraving and milling machines, five-linkage 3D profiling polishing machines, five-axis jewelry inlaid stone engraving and milling machines, peeling machines, gantry processing centers, high-speed Engraving and milling, forming machine, low-pressure casting machine, gravity die-casting machine, electric furnace, (automatic) core shooter, sand mixer, (CNC) drilling and tapping machine, machining center, engraving machine, automatic polishing machine, peeling machine, grinding machine, etc. series of products.
