Low Price Quality High Speed Engraving And Milling Machine Series In Stock. YueLi is High Speed Engraving And Milling Machine Series manufacturer and supplier in China.
YueLi is High Speed Engraving And Milling Machine Series manufacturer and supplier in China.

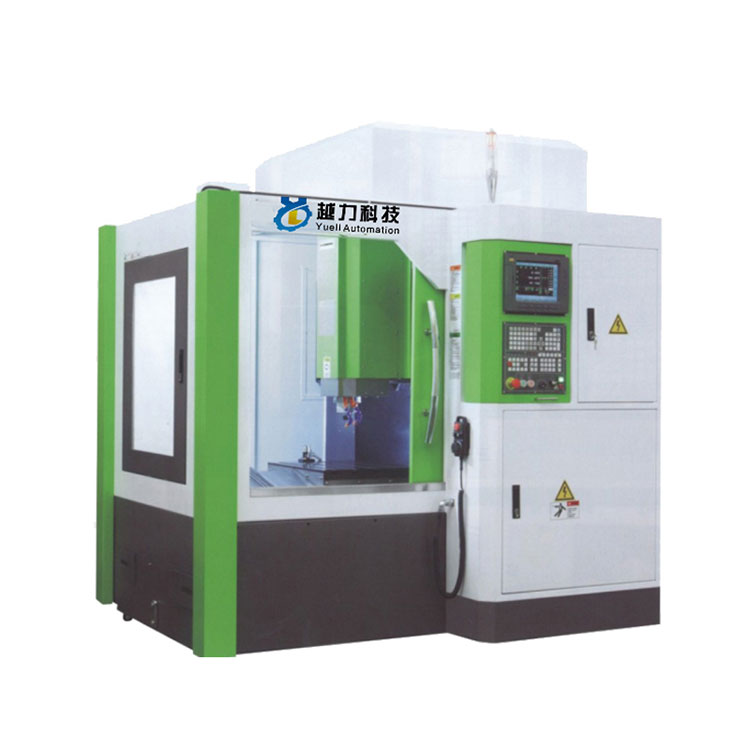

The machine has a gantry structure and is made of "Meehanna" high-grade cast iron. The internal keel is reinforced. All the cast iron has been annealed and has high stability and no deformation. Overall, it is heavier than similar models. The sealed outer cover and double-sided door opening seal facilitate product processing. A special high-speed engraving and milling machine control system developed using Japanese and Taiwanese technology. The main components are imported from Japan, Switzerland, Germany, and Taiwan, such as: servo motors, linear rails, couplings, and screw rod assemblies. Strengthen high-precision and high-efficiency characteristics. It can precisely process different materials: steel, copper, aluminum, graphite, organic glass, etc. The spindle can cool itself during high-speed operation to ensure that heat will not damage the spindle characteristics. Precision ball screws and linear guides, and the couplings are tightly measured to ensure stability during processing and zero clearance in return action. This model can be equipped with tool magazines at any time according to customer needs to improve production efficiency.
Model |
Unit |
MK-540E |
MK-650E |
MK-760E |
MK-870E |
|
stroke |
left and right(X) |
mm |
500 |
600 |
700 |
800 |
before and after(Y) |
mm |
400 |
500 |
600 |
700 |
|
up and down(Z) |
mm |
230 |
280 |
320 |
350 |
|
Workbench area |
mm |
500x450 |
500x600 |
600x800 |
900x700 |
|
Maximum load of workbench |
kg |
300 |
300 |
500 |
500 |
|
Distance from work table to spindle end face |
mm |
80-290 |
80-310 |
150-470 |
140-490 |
|
Spindle speed |
rpm |
2000-24000 |
2000-24000 |
2000-24000 |
2000-24000 |
|
Spindle collet/spindle taper |
|
ER25 |
ER25 |
ER25 |
BT30 |
|
Spindle cooling |
|
Oil cooler |
Oil cooler |
Oil cooler |
Oil cooler |
|
X/Y/Z axis servo motor |
kw |
0.85-2.0 |
0.85-2.0 |
0.85-2.0 |
0.85-2.0 |
|
Spindle motor |
kw |
4.5 |
5.5 |
5.5 |
5.5/OPT7.5 |
|
rapid feed |
m/min |
15 |
15 |
15 |
15 |
|
cutting feed |
m/min |
8 |
8 |
8 |
8 |
|
CNC system resolution |
mm |
0.001 |
0.001 |
0.001 |
0.001 |
|
Repeatability |
mm |
±0.003/300 |
±0.003/300 |
±0.003/300 |
±0.003/300 |
|
positioning accuracy |
mm |
±0.005 |
±0.005 |
±0.005 |
±0.005 |
|
Tool setter |
|
Standard |
Standard |
Standard |
Standard |
|
Lubrication system |
|
Fully automatic lubrication system |
Fully automatic lubrication system |
Fully automatic lubrication system |
Fully automatic lubrication system |
|
Mechanical weight (approx.) |
KG |
2500 |
3500 |
3800 |
4000 |
|
Overall dimensions (length x width x height) |
mm |
1860x1800x2200 |
2020x1900x2300 |
2300x2100x2400 |
2300x2300x2400 |
1.Cast iron is reheated at high temperature and aged for more than six months
2.Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.)
3.Superb scraping technology (motor seat scraping, spindle end face scraping, column mounting surface scraping)
4.Scientific production, traceability of the whole process of the quality control system
1.When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured
2. The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.01mm
3.The verticality between Z-axis guide rail and working is required to be guaranteed within 0.01mm.
4.The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.005mm.
Suitable for small and medium-sized box class, plate class, plate class, valve class, shell class, mold and other complex parts of a variety of small and medium-sized batch processing, widely used in precision parts, precision mold, 5G products, hardware, auto parts, medical equipment industry.
