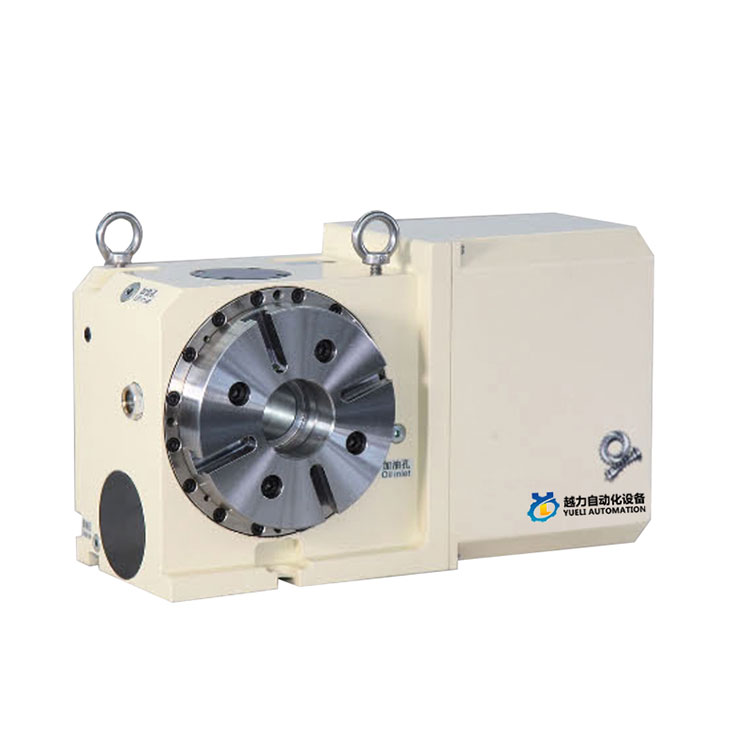

YueLi is one of the professional 170 Four-axis CAM Turntable manufacturers and suppliers in China. Our products are CE certified and have in stock of factory, welcome to wholesale 170 Four-axis CAM Turntable from us.
YueLi is one of the famous China 170 Four-axis CAM Turntable manufacturers and suppliers. Our factory specializes in manufacturing of 170 Four-axis CAM Turntable. Welcome to buy 170 Four-axis CAM Turntable from us. Every request from customers is being replied within 24 hours.
Cam-roller transmission structure is adopted inside the product.
CAM shaft needle roller bearing precompression no gap rolling drive.
No sliding friction, continuously maintain no gap characteristics.
High accuracy of forward and reverse motion repetition.
High rigidity, high efficiency.
Does not cause poor accuracy due to temperature rise.
No need for regular calibration and adjustment.
Compared with the traditional worm gear type NC turntable, the grating CAM type NC turntable has higher precision
Operating characteristics of degree, high speed, zero back clearance and heavy load. Input axial cams
The needle roller bearing on the output shaft turret of the constant speed driving curved surface is precompressed rolling contact transmission,
To achieve zero back backlash and higher speed operation, due to the rolling transmission almost zero
Friction movement, so that the mechanism can maintain no backbacklash transmission, high precision positioning, and no need
Regular calibration and adjustment work should be done. Lattice CAM type CNC turntable, Han out of the shaft use
The large bearing is arranged on the round outer wall of the shaft, and the two ends of the CAM input shaft are set with double bearings.
It also enhances the stability and load capacity of the turntable, and can better cope with the processing
High speed and heavy cutting force, improve machining accuracy, efficiency and reduce costs.
No. |
Item |
Roller CAM Driyer 1M |
Worm Gear Type |
1 |
Drive type |
Ccw Output Angle |
- CCWa Outout Ang 360 |
2 |
Drive status |
Rolling contact |
Slide contact |
3 |
Material:Hardness of the contacpa |
Cam shaft:Hardening steel; HRC60 |
Worm shaft: Hardening steel; HRC60 |
Cam followers;Bearing steel; HRC60 |
Worm gear; Phosphor bronze; HB90 |
||
4 |
Preload |
○YES |
X N0 |
5 |
Transmission efficiency |
〇Higher |
△Lower |
|
Item N0. |
Competltor |
|
Release spindle clamping |
|||
Acceleraion |
|||
Linear rotary movement |
Linearrotarymovement |
||
Decelerate |
Decelerate |
||
Machining release |
Machining release |
||
Clamp spindle |
Clamp spindle |
||
Cycletime |
Cycletime |
Speed capacity |
Rigidity |
![]() |
![]() |
Durability |
3 Roller Bearing |
![]() |
![]() |
CODE NO |
UNIT |
Yueli170 |
|
Table diameter |
φmm |
170 |
|
Center height |
mm |
135 |
|
Spindle hole |
φmm |
60 |
|
T slot width |
mm |
12 |
|
Guide key width |
mm |
18 |
|
Servo motor |
FANUC |
β8 |
|
MITSUBISH |
HF104 |
||
Min increment |
|
0.001° |
|
Gear ratic |
|
1:36 |
|
Max.rotation speed(3000 rpm) |
rpm |
80 |
|
Output rate torque |
kg/m |
35 |
|
Hydraulic resource pneumatic/hydraulic |
kg/m² |
20 |
|
Output torque at brake |
kg/m |
35 |
|
Indexing accuracy |
sec |
20 |
|
Repeatability |
sec |
4 |
|
Product quality |
kg |
63 |
|
Allowable worweight |
vertical |
kg |
70 |
horizontal |
kg |
140 |
|
vertical tailstock |
kg |
140 |
|
Allowableload |
↓F |
kgf-m |
800 |
|
F*L kgf-m |
42 |
|
|
F*L kgf-m |
40 |
