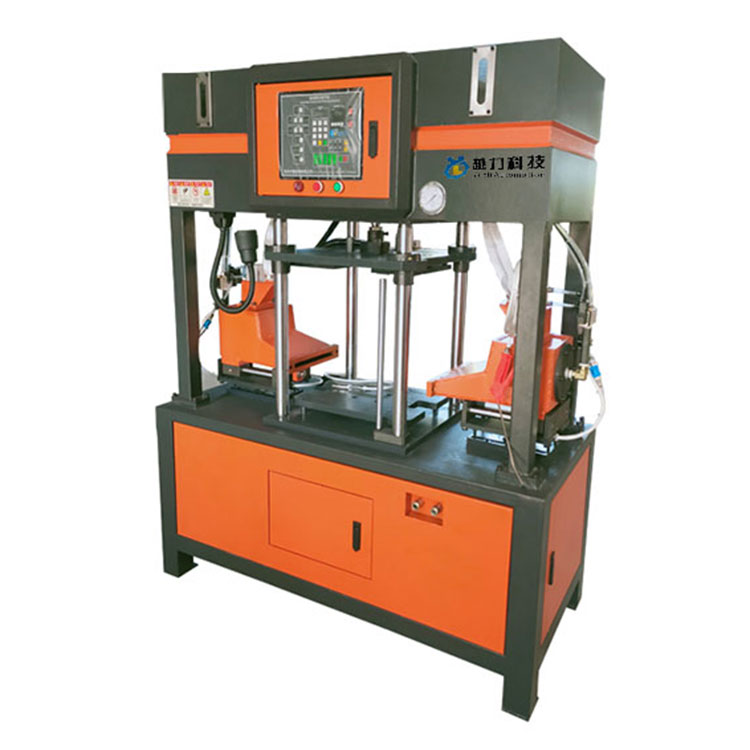

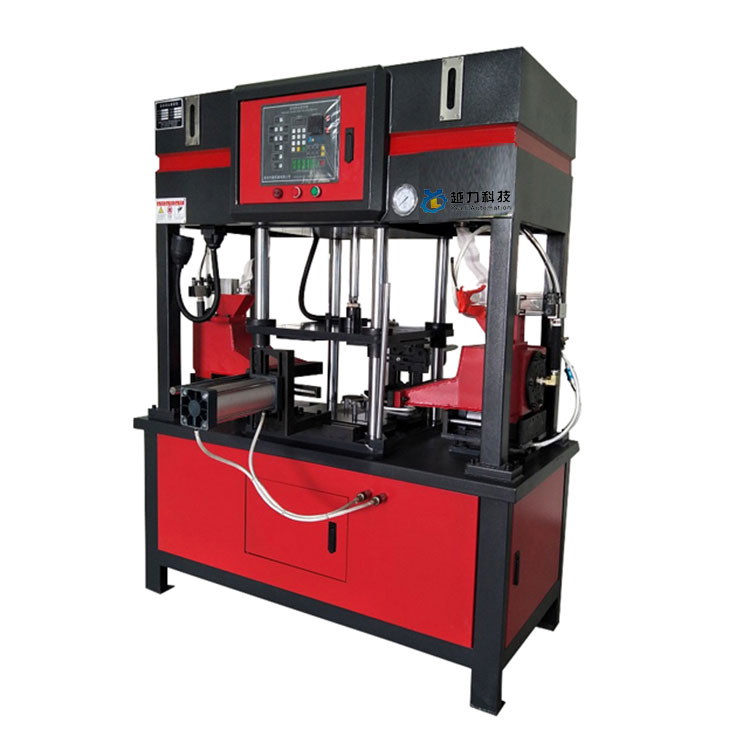

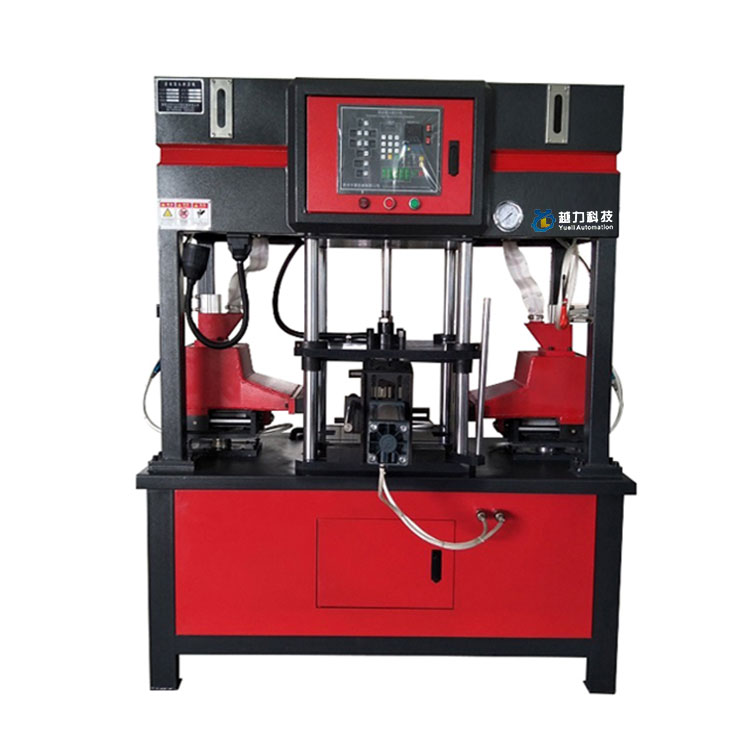

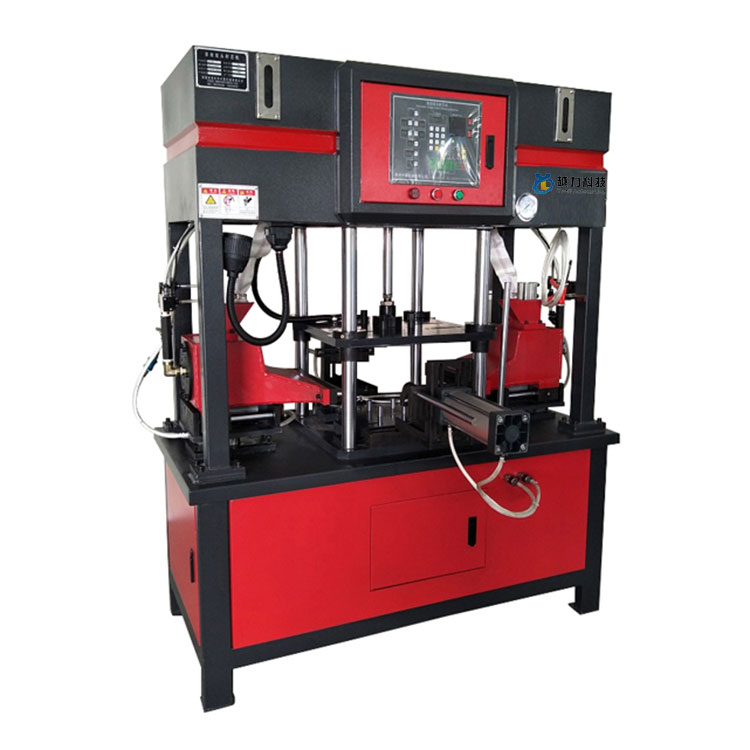

YueLi is a professional Automatic Dual-Headed Core Machine manufacturers and suppliers in China.
YueLi is Automatic Dual-Headed Core Machine manufacturers and suppliers in China who can wholesale Automatic Dual-Headed Core Machine, we can provide professional service and better price for you.
Mature and stable, easy to operate,low failure rate;
High degree of automation,intelligent and efficient;

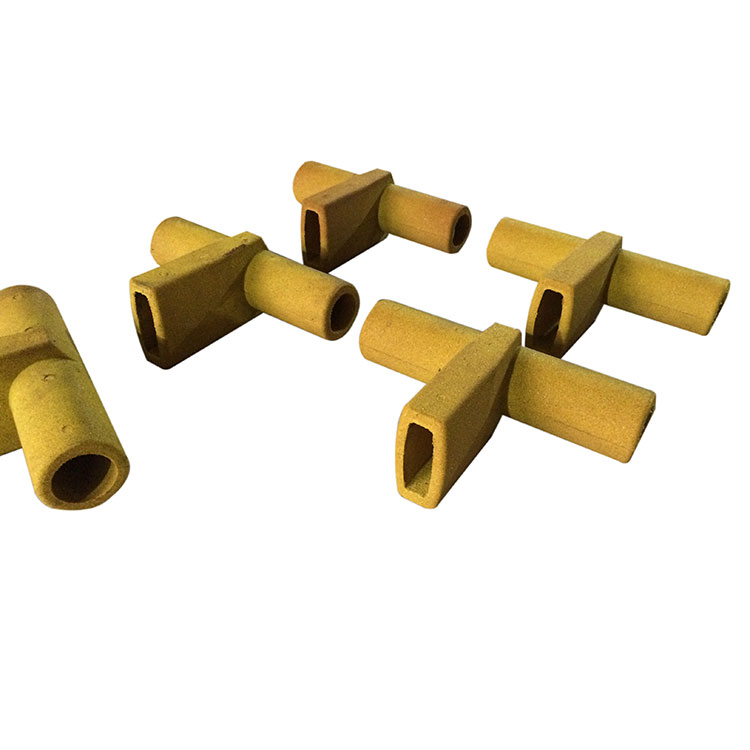

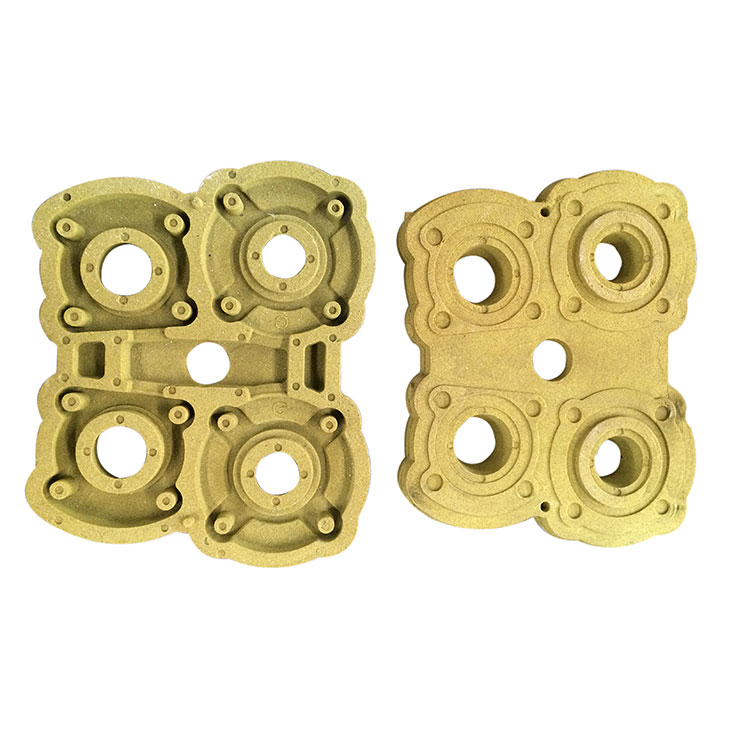

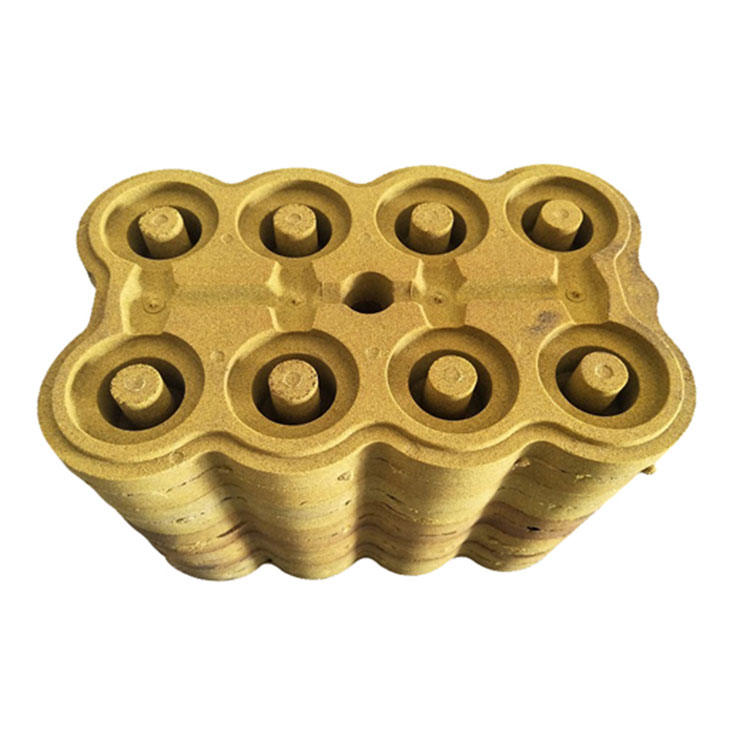

Sand type is good in quality, full and smooth, and accurate in size;
We can help customers design and manufacture molds, tailored products, test in the company,customer acceptance, provide one-stop service.
MAIN SPECIFICATIONS AND TECHNICAL PARAMETERS
Automatic double-head cora shooter (Dry Sand) |
Contents | ZL-400-B | ZL-400-ll(Extra large size) |
Maximum sand core weight | 3.2 kgx2 | 4.5 kgx2 | |
Maximum mold size | 340x450x200 mm | 340x450x280mm | |
Maximum distance between nozzles | 270 mm | 270mm | |
Maximum stroke of vertical clamping | ≤300mm | ≤500mm | |
Sand box left and right distance | 150mm | 150mm | |
Equipment power | 8 kw | 8 kw | |
Net weight of equipment | 520 kg | 600 kg | |
Equipment dimensions(Lx WxH) | 1420x680x1700 mm | 1420x680x2100 mm |
