BTER End Mill Shank

One of Chinese manufacturer of BTER End Mill Shank, offering excellent quality at a competitive price, is YueLi. Feel free to get in touch.

Send Inquiry

Product Description

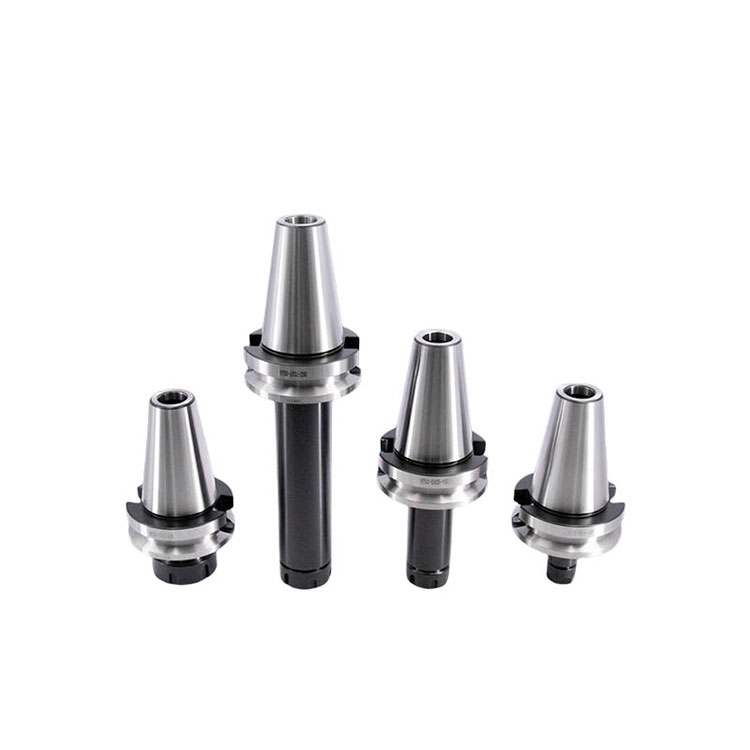

BT/ER end mill shank

As one of professional high quality BTER End Mill Shank manufacturer, you can rest assured to buy BTER End Mill Shank from YueLi and we will offer you the best after-sale service and timely delivery.
BT30/40/50ER

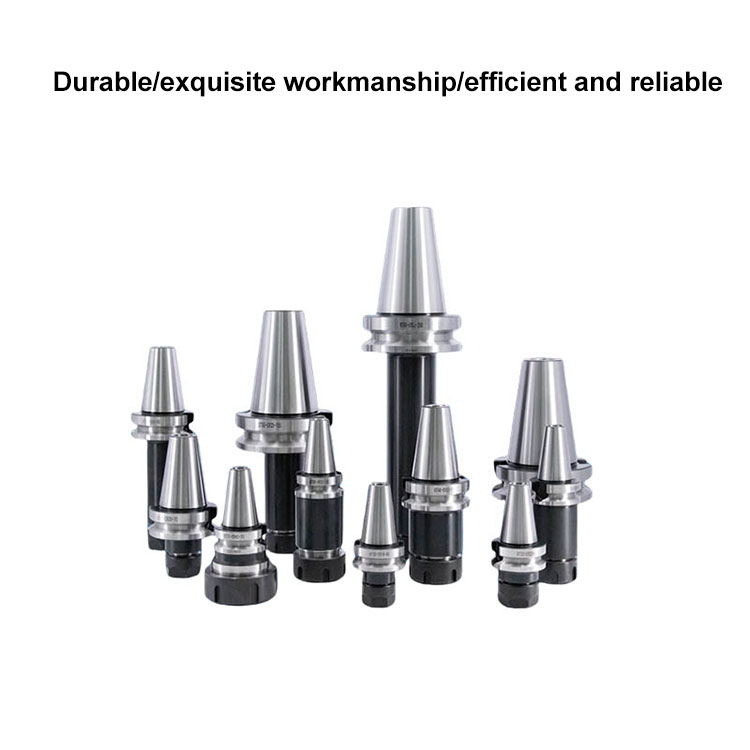

Durable/exquisite workmanship/efficient and reliable

High frequency quenching precision more durable specifications complete

BTER End Mill Shank

Product information

Product: NT-ER collet holder

Specification :BT30/40/50

Model :ER11/16/20/25/32/40

Material :40Cr

Stable internal and external molding

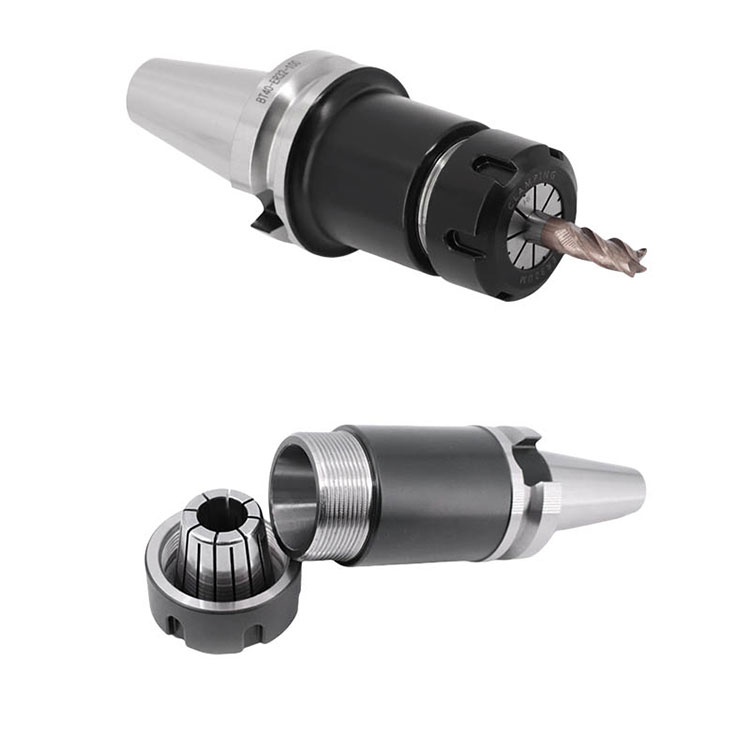

Tool handle once clamping, high concentricity, high strength after hot processing and high temperature treatment, with a certain degree of flexibility and plasticity.

BTER End Mill Shank

High precision wear and durable

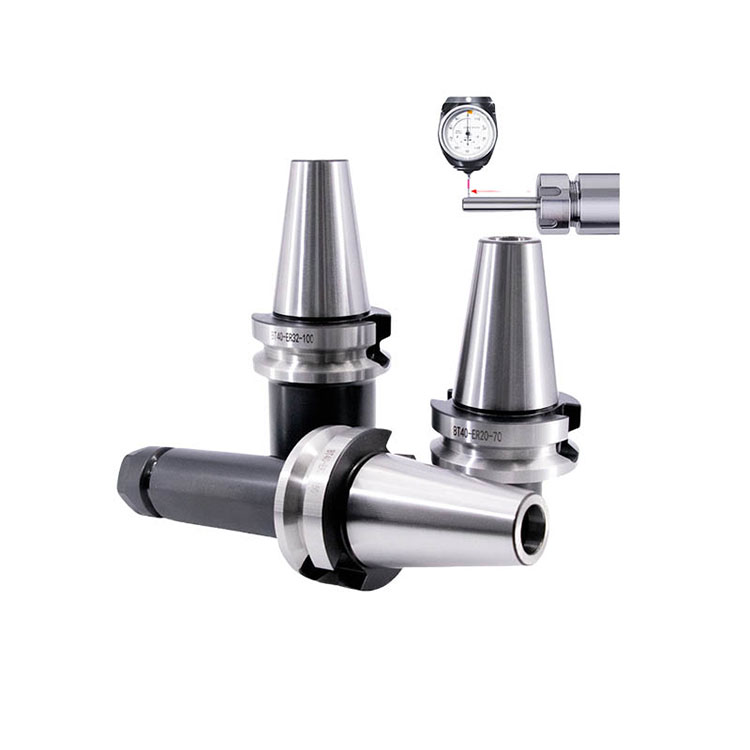

Inner hole high-precision grinding, the overall finishing is suitable for high-precision machine tool processing requirements, beating accuracy <0.003

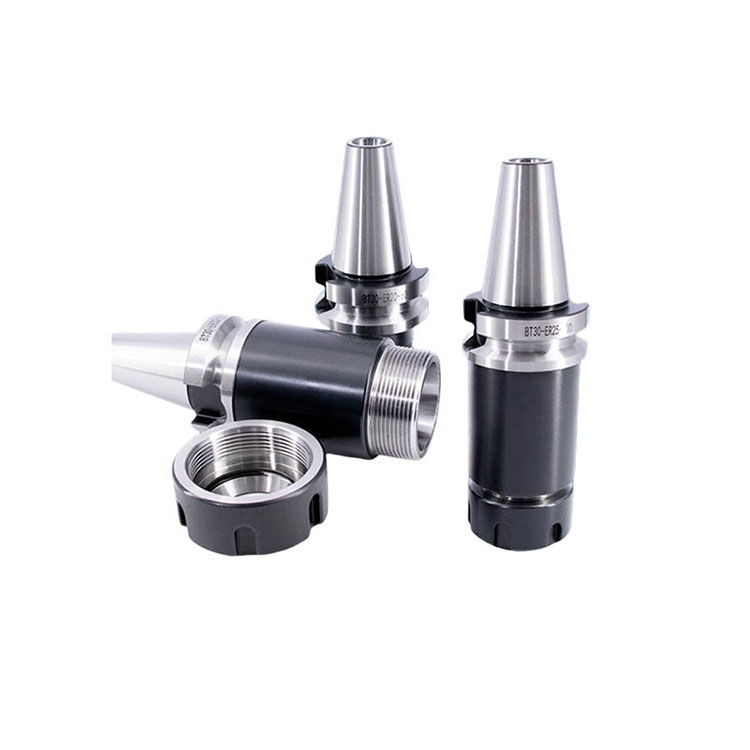

Thread explosion-proof easy locking

Product threads meet the requirements of national standards, regular inspection qualified threads neat and smooth, no teeth without burrs, are forming technology production

01 Seismic bending resistance

The use of high-quality steel, not easy to deformation to ensure accuracy stability
BTER End Mill Shank
02 Increase life expectancy

Advanced vacuum quenching furnace can realize carbonitriding, improve the hardness and enhance the life of the tool bar
BTER End Mill Shank
03 Precision stability

Exquisite workmanship high concentricity, good processing effect, improve processing efficiency

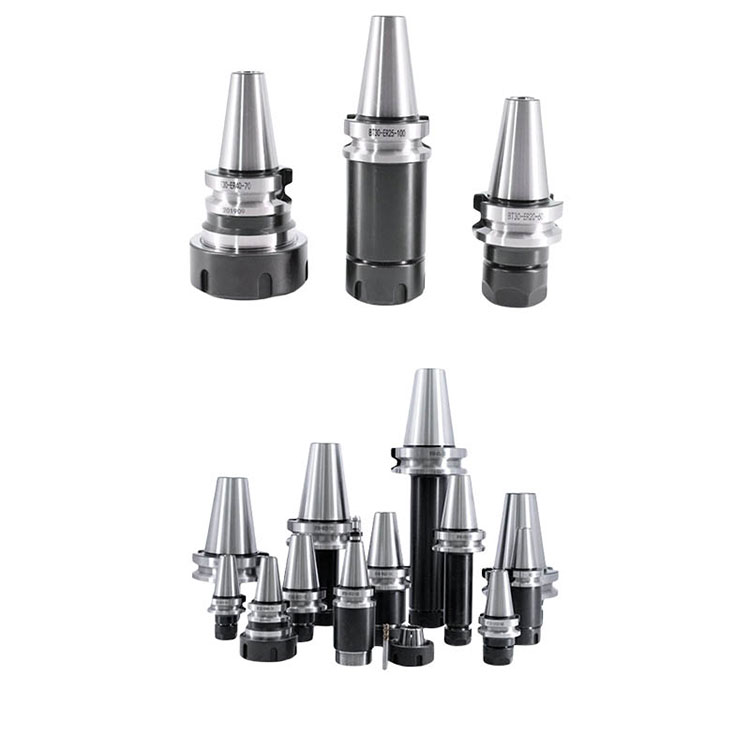

Product shooting

BTER End Mill Shank

Specification	L	L1	d1	d2	d3	T	Weight
BT30XER16-70	118.4	70	28	16	28	M10-1.5P	0.55
BT30XER16-100	148.4	100	28	16	28	M10-1.5P	0.80
BT30XER16-120	168.4	120	28	16	28	M10-1.5P	0.95
BT30XER20-70	118.4	70	34	20	34	M12x1.75P	0.75
BT30XER20-100	148.4	100	34	20	34	M12x1.75P	0.75
BT30XER20-135	183.4	135	34	20	34	M12x1.75P	1.15
BT30XER25-70	118.4	70	42	25	42	M16x2.0P	0.70
BT30XER25-135	183.4	135	42	25	42	M16x2.0P	1.45
BT30XER32-70	118.4	70	50	32	45	M16x2. OP	0.85
BT30XER32-100	148.4	100	50	32	45	M16x2.0P	1.00
BT30XER40-80	128.4	80	63	40	53	M16x2.OP	1.10
BT40XER16-70	135.4	70	28	16	28	M10x1.5P	1.20
BT40XER16-100	165.4	100	28	16	28	M10x1.5P	1.30
BT40XER16-125	190.4	125	28	16	28	M10x1.5P	1.36
BT40XER16-150	215.4	150	28	16	28	M10x1.5P	1.54
BT40XER20-70	135.4	70	42	20	34	M12x1.75P	1.40
BT40XER20-100	170.4	100	42	20	34	M12x1.75P	1.50
BT40XER20-135	200.4	135	42	20	34	M12x1.75P	1.70
BT40XER20-150	215.4	150	42	20	34	M12x1.75P	1.80
BT40XER25-70	135.4	70	50	25	42	M16x2.OP	1.30
BT40XER25-90	155.4	90	50	25	42	M16x2.OP	1.50
BT40XER25-125	190.4	125	50	25	42	M16x2.OP	1.90
BT40XER25-150	215.4	150	50	25	42	M16x2.OP	2.25
BT40XER32-70	135.4	70	50	32	50	M16x2.OP	1.30
BT40XER32-100	165.4	100	50	32	50	M16x2.OP	1.70
BT40XER32-150	215.4	150	50	32	50	M16x2.OP	2.5
BT40XER40-80	145.4	80	63	40	63	M16x2.OP	1.50
BT40XER40-100	165.4	100	63	40	63	M16x2.OP	2.05
BT40XER40-120	185.4	120	63	40	63	M16x2.OP	2.50
BT40XER40-150	215.4	150	63	40	63	M16x2.OP	3.10
BT40XER50-85	145.4	85	78	50	59	M24x2.0P	1.70
BT40XER50-100	165.4	100	78	50	59	M24x2.0P	2.10
