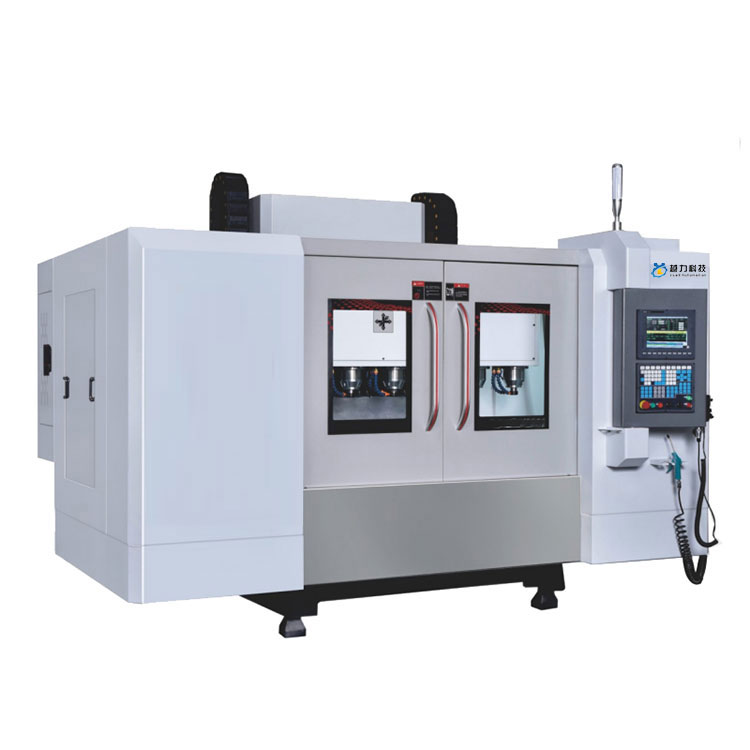

Hot Selling CNC Machine For Surface milling in The Bathroom Industry. YueLi is CNC Machine For Surface milling in The Bathroom Industry manufacturer and supplier in China.
Hot Sale China CNC Machine For Surface milling in The Bathroom Industry Manufacturers and Suppliers. YueLi is CNC Machine For Surface milling in The Bathroom Industry manufacturer and supplier in China.
1. The spindle box adopts a nitrogen balancing mechanism to ensure the balance, smoothness, stability and vibration-free Z-axis rapid up and down movement.
2. The three axes use high-precision heavy-duty P4 ball guides and C3 screws.
3. Six products can be processed at the same time, which greatly improves production efficiency and reduces costs.
4. Specialized in the processing of small porous parts and products. It is suitable for bathroom peeling, communication equipment, aerospace, automobiles and motorcycles, instrumentation, light industry and textile, electronic appliances and machinery manufacturing industries, as well as processing of copper and aluminum electrodes.
5. The main structure is made of high-strength cast iron and has undergone stress-relief annealing and natural aging treatment. The accuracy of the bed is long-lasting and stable, and it will not deform for a long time;
6. Use a high-precision electric spindle to achieve high-speed processing of workpieces; use an oil temperature cooling machine system to reduce the temperature rise problem caused by high-speed rotation of the spindle;
7. Effectively improve the thermal extension of the spindle and improve processing accuracy;
8. The base of the machine body adopts a rear tilt structure design to facilitate the cleaning of waste inside the machine tool;
9. The structural design of the high column increases the distance from the spindle nose to the workbench, which is more suitable for the installation and application of fourth-axis components and makes the processing area wider;
10. It adopts an automatic oil injector for orbital lubrication and controls the oil injection amount intermittently and quantitatively, which can lubricate moving parts for a long time;
Mechanical parameters |
unit |
MK-8T260 |
Workbench travel (X/Y/Z) |
mm |
600x500x450 |
Workbench area |
mm |
2100x500 |
T-slot |
mm |
3-18Tx130 |
weight capacity |
kg |
800 |
Distance from spindle center to column |
mm |
485 |
Distance from spindle nose to worktable |
mm |
100-550 |
Three axis motor power |
KW |
3.9x5.9x3.9 |
X.Y.Z rapid feed |
m/min |
25/25/25 |
controller |
|
SYNTEC 21MA-E |
Spindle end specifications |
|
φ120 |
Spindle speed |
rpm |
24000 |
Spindle power |
HP(KW) |
7.5 |
positioning accuracy |
mm |
±0.003/300 |
Repeatability |
mm |
±0.002/300 |
Air pressure specifications |
kg/cm2 |
6-7bar |
physical dimension |
mm |
3200x3100x2800 |
Mechanical weight (approx.) |
KG |
6500 |
1.Cast iron has been furnaced at high temperatures and aged for more than six months.
2.2 Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.)
3.Superb scraping technology (motor seat scraping, spindle end face scraping, column mounting surface scraping)
4.Scientific production, traceability of the whole process of the quality control system
1.When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured
2.The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.01mm
3.The verticality between Z-axis guide rail and working is required to be guaranteed within 0.01mm.
4.The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.005mm.
Suitable for small and medium-sized box class, plate class, plate class, valve class, shell class, mold and other complex parts of a variety of small and medium-sized batch processing, widely used in precision parts, precision mold, 5G products, hardware, auto parts, medical equipment industry.
Yueli Technology is a technology enterprise integrating R&D, sales and production,After years of hard work and development, the products include 5G terminal processing centers, drilling and tapping machines, five-head engraving and milling machines, five-linkage 3D profiling polishing machines, five-axis jewelry inlaid stone engraving and milling machines, peeling machines, gantry processing centers, high-speed Engraving and milling, forming machine, low-pressure casting machine, gravity die-casting machine, electric furnace, (automatic) core shooter, sand mixer, (CNC) drilling and tapping machine, machining center, engraving machine, automatic polishing machine, peeling machine, grinding machine, etc. series of products.
