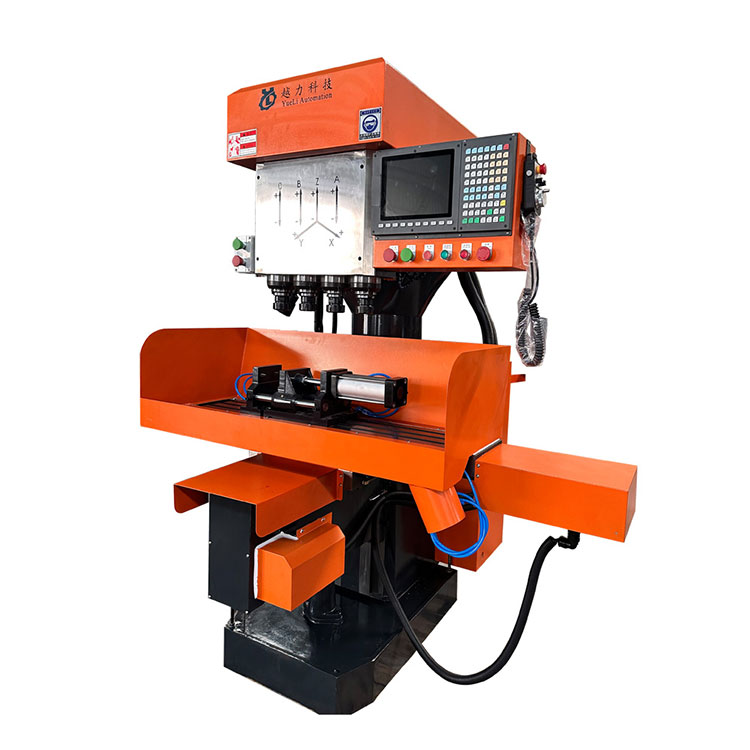

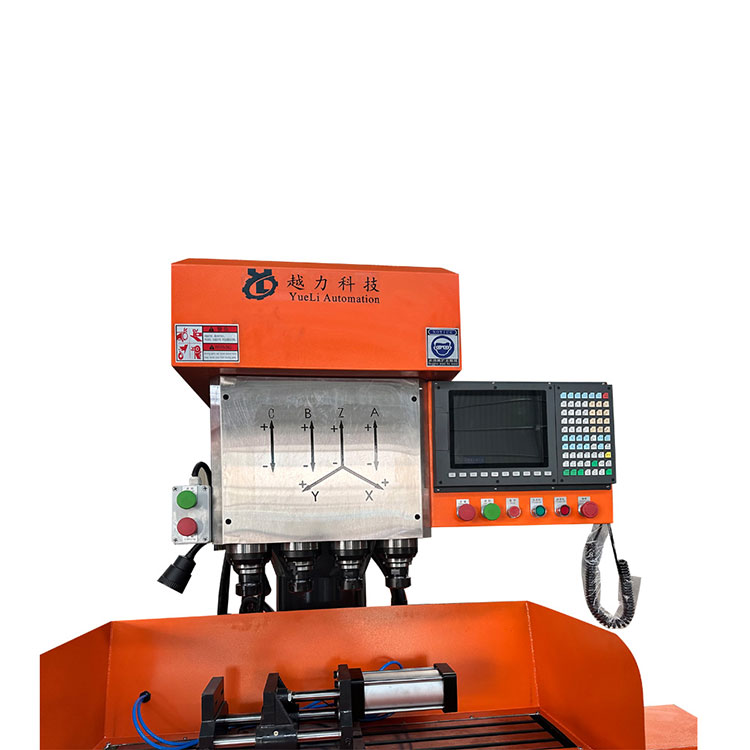

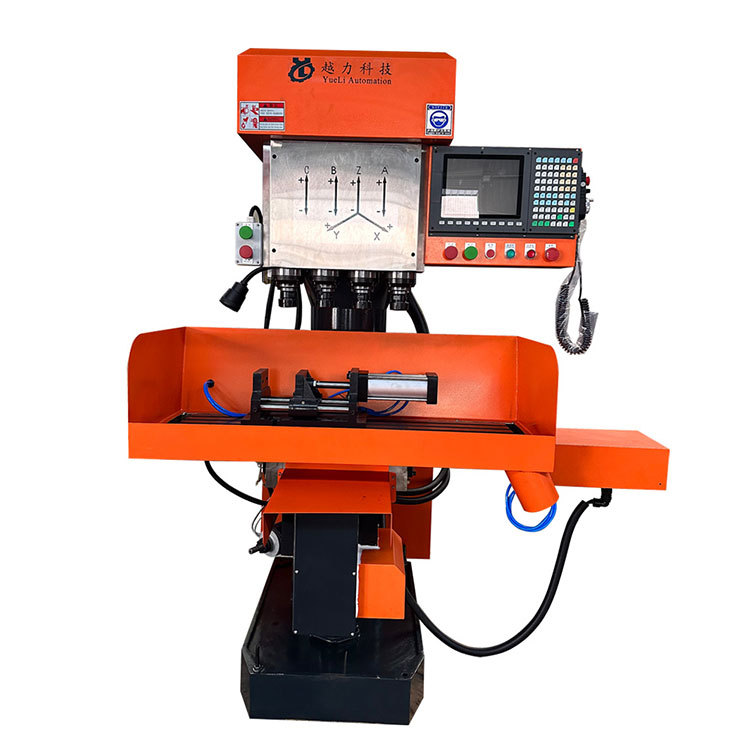

YueLi is one of the best suppliers and manufacturers of Vertical Four-Axis Drilling And Milling Machining Center in China. We welcome to buy Vertical Four-Axis Drilling And Milling Machining Center from our factory. If you are interested in our product, please contact us quickly! Taiwan Yitu numerical control system; Touch screen human-machine interface friendly dialogue, intuitive programming easy to operate. Ordinary people can learn quickly.
1. Taiwan Yitu numerical control system; Touch screen human-machine interface friendly dialogue, intuitive programming easy to operate. Ordinary people can learn quickly.
2, four axis CNC functions are: four axes can be drilled, tapping, milling, silver ball screw feed, with 5.5KW servo main motor to achieve the system of steel tapping, with inverter, can be stepless speed regulation, but also to ensure the accuracy of processing
3, South Korea imported pneumatic components.
4, the table by high-frequency quenching grinding, high wear resistance, with silver ball screw, can achieve heavy cutting.
5, digital control positioning, repeated positioning accuracy is high, fast tool adjustment speed.
6, the operation is convenient and fast, to achieve one person and multiple machines, greatly reducing labor costs and labor intensity.
7. Equipped with fully enclosed protective cover to keep the workshop clean
Name specification |
50 four-axis hard gauge |
Parameter name |
ZSK 4150×4B |
X axis maximum travel (lead screw) mm |
700mm |
Y-axis maximum travel mm |
160mm |
Spindle sleeve diameter mm |
105mm |
Spindle taper |
BT40 |

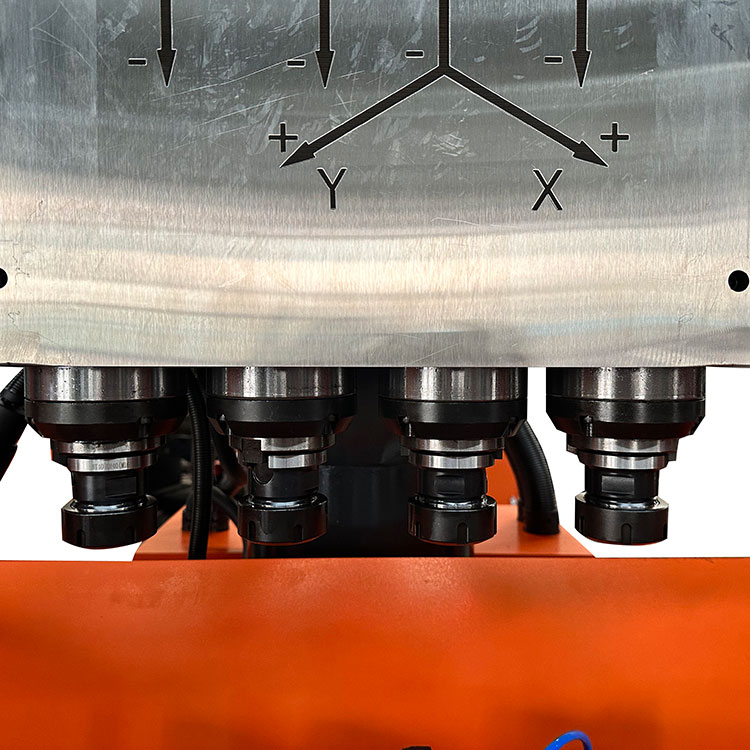

Z1/Z2/Z3/Z4 Maximum stroke mm |
125mm |
Spindle spacing mm |
120mm |
Spindle end face to work surface mm |
250/500mm |
The distance between the spindle axis and the guide rail surface of the bed is mm |
250 |
Maximum drilling diameter mm |
50mm |
Maximum tapping diameter mm |
50mm |
Spindle speed r/min |
0-3000 r/min |
Spindle motor power KW |
5.5KW |
Overall dimensions LWH: |
1700*1850*2250 |
Net weight of machine tool KG |
1600KG |
1 Cast iron is reheated at high temperature and aged for more than six months.
2 Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.).
3 Exquisite scraping technology (motor base scraping, spindle end scraper, column installation surface scraper Scrape).
4, scientific production, traceability of the whole process of the quality control system.
1 When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured.
2 The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.03mm.
3 Check the verticality between Z-axis guide rail and working, and ensure that it is within 0.03mm.
4 The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.01mm.
Suitable for small and medium-sized box class, plate class, plate class, valve class, shell class, mold and other complex parts of a variety of small and medium-sized batch processing, widely used in plumbing sanitary ware, valves, gating, hardware, auto parts, medical equipment industry.
