You can rest assured to buy Vertical Machining Centers from YueLi factory and we will offer you the best after-sale service and timely delivery. HUST CNC system; touch screen human-machine interface, friendly dialogue, intuitive programming and easy operation. Ordinary people can learn it quickly.
Introducing our revolutionary Vertical Machining Centers - the ultimate solution for precision manufacturing needs. Our state-of-the-art machinery is designed to provide unparalleled accuracy and efficiency to help boost your productivity and grow your business.
At the heart of our Vertical Machining Centers lies advanced technology and engineering, which ensures the perfect blend of power and speed, providing faster processing times and greater accuracy. Our machines are engineered to handle high-performance operations with ease and are fully automated, giving you the flexibility and convenience to streamline your manufacturing process.

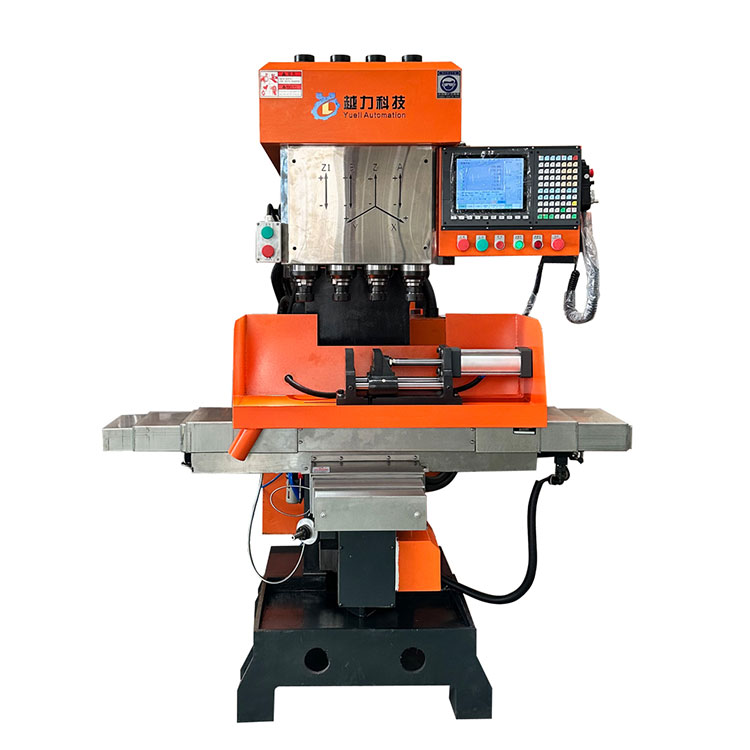

1. HUST CNC system; touch screen human-machine interface, friendly dialogue, intuitive programming and easy operation. Ordinary people can learn it quickly.
2. The four-axis CNC functions are: all four axes can drill, tap, mill, and silver the ball screw feed. It is equipped with a 5.5KW servo main motor to realize the rigid tapping of the system. It comes with a frequency converter and can be stepless. Speed regulation also ensures processing accuracy.
3. Pneumatic components imported from South Korea.
4. The workbench and middle support are equipped with silver roller wire gauges and roller screws to achieve heavy-duty cutting.
5. Digitally controlled positioning, high repeatability positioning accuracy and fast tool adjustment speed.
6. The operation is convenient and fast, allowing one person to have multiple machines, greatly reducing labor costs and labor intensity.
7. Equipped with a fully enclosed protective cover to keep the workshop clean and tidy
Name specification |
50 four-axis linear rail |
parameter name |
ZSK4150*4 |
Maximum travel of X-axis (screw) mm |
500mm |
Y-axis maximum travel mm |
280mm |
Spindle sleeve diameter mm |
105mm |
Spindle taper |
BT40 |
Z1/Z2/Z3/Z4 maximum stroke mm |
110mm |
Spindle distance mm |
120mm |
Spindle end to work table mm |
250/500mm |
Distance between spindle axis and bed guide rail mm |
250 |
Maximum drilling diameter mm |
50mm |
Maximum tapping diameter mm |
50mm |
Spindle speed r/min |
0-3000 r/min |
Spindle motor power KW |
5.5KW |
Overall dimensions LWH: |
1700*1850*2250 |
Machine tool net weight KG |
1600KG |
1 Cast iron has been refurbished at high temperatures and aged for more than six months.
2 Rigorous assembly process (line rail assembly, screw assembly, bearing assembly, etc.)
3 Exquisite scraping technology (motor base scraping, spindle end face scraping, column mounting surface scraping).
4 Scientific production and quality control system with full traceability.
1. When performing pitch error detection, the straightness of the linear guide rail in the xx and yy directions can be detected at the same time to ensure the processing and assembly accuracy of each machine tool component. The actual positioning accuracy and repetitive positioning accuracy of the machine tool were measured.
2. The whole machine detects the verticality of the spindle and the accuracy of the working plane, and it is required to be within 0.03mm.
3. The whole machine detects the perpendicularity between the z-axis guide rail and the work, and it is required to ensure that it is within 0.03mm.
4 The whole machine detects the verticality of the xy-axis guide rail, and the accuracy is required to be within 0.01mm.
It is suitable for processing small and medium-sized batches of complex parts such as small and medium-sized boxes, plates, plates, valves, shells, molds, etc. It is widely used in precision parts, precision molds, 5G products, hardware, auto parts, and medical equipment. industry.
