YueLi is China manufacturer & supplier who mainly produces Aluminum Alloy Die Casting Machine with many years of experience. Hope to build business relationship with you.
YueLi is a professional China Aluminum Alloy Die Casting Machine manufacturer and supplier, if you are looking for the Aluminum Alloy Die Casting Machine with low price, consult us now!

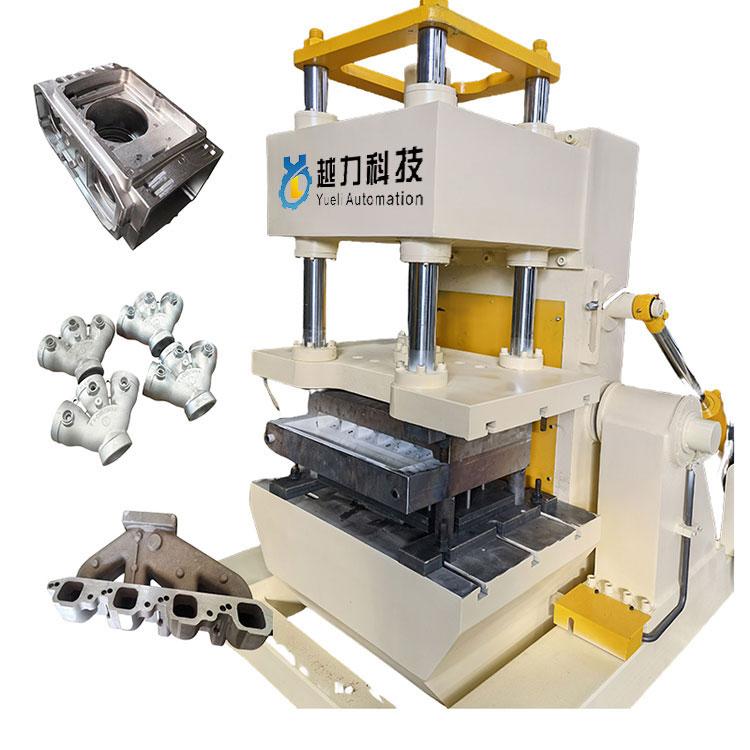

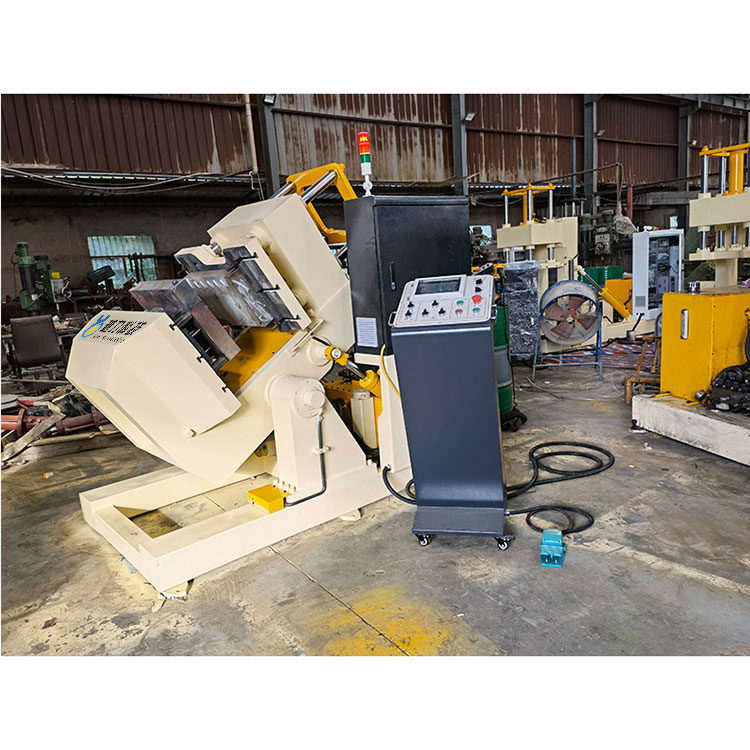

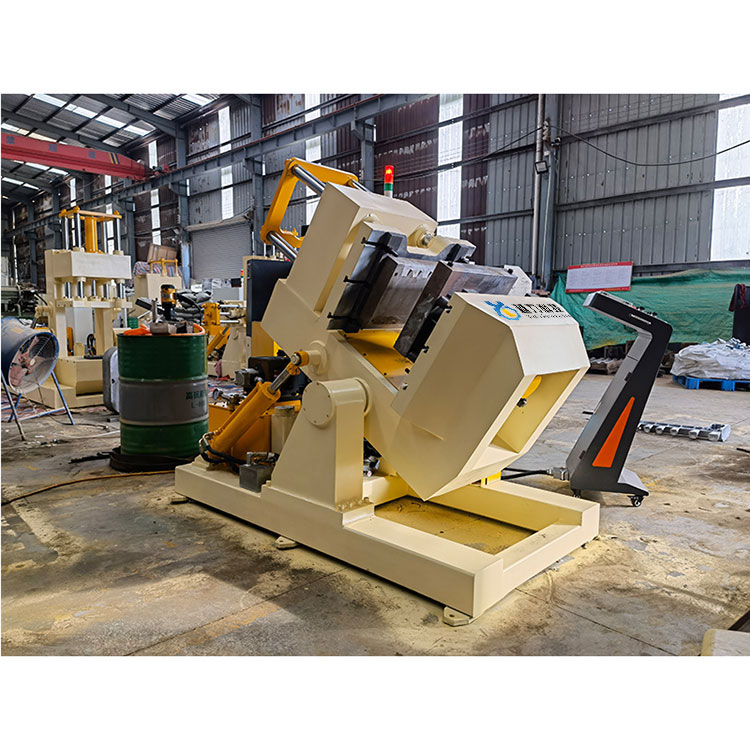

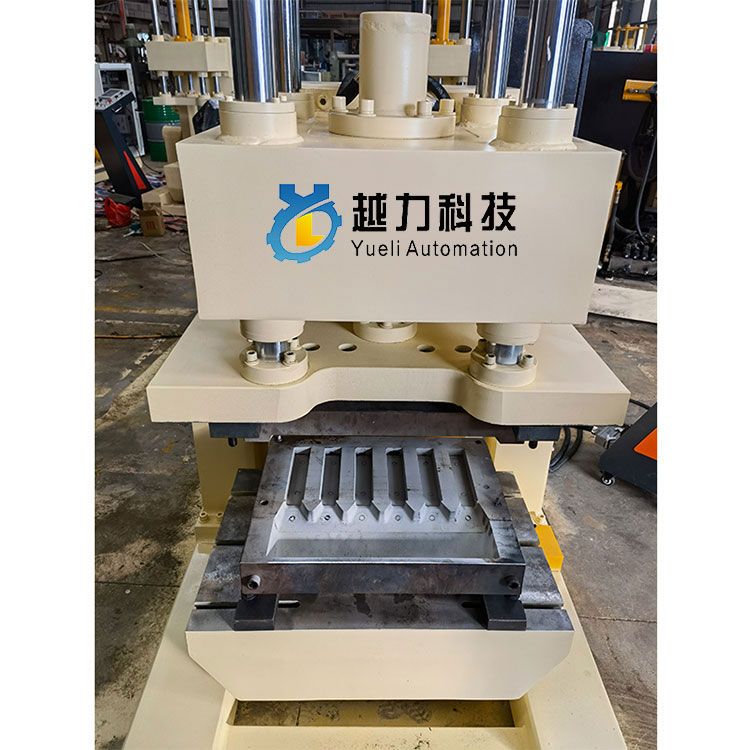

YL650 aluminum alloy tilt casting machine [Servo precision hydraulic system. Automatic pressure compensation. Intelligent casting. Intelligent pick-up]
It is suitable for gravity casting of aluminum alloy and zinc alloy products. The equipment is widely used in the casting production of accessories in hardware and sanitary ware, handicrafts, decorations, auto parts and other industries.
Serial Number |
Disposition |
Parameter |
1 |
Maximum Die Size |
600×500mm |
2 |
Opening And Closing Die Stroke [Full Servo Hydraulic System. Automatic Replenishment |
≤500mm |
3 |
Minimum Closing Distance |
200mm |
4 |
Maximum Distance Of Mold Opening |
700mm |
5 |
Top Core-Pulling Stroke |
≤50mm |
6 |
Rear Core-Pulling Stroke |
≤100mm |
7 |
Lower Core-Pulling Stroke |
≤50mm |
8 |
Maximum Clamping Force |
50KN |
9 |
Maximum Opening Force |
55KN |
10 |
Table Tilt Angle |
0-90 度 |
11 |
Hydraulic System Working Pressure |
4.5Mpa |
12 |
Jacking Cylinder Output |
25KN |
13 |
Rated Power Of Hydraulic Station |
3.75KW |
14 |
Machine Dimensions |
2500×1600×1500mm |

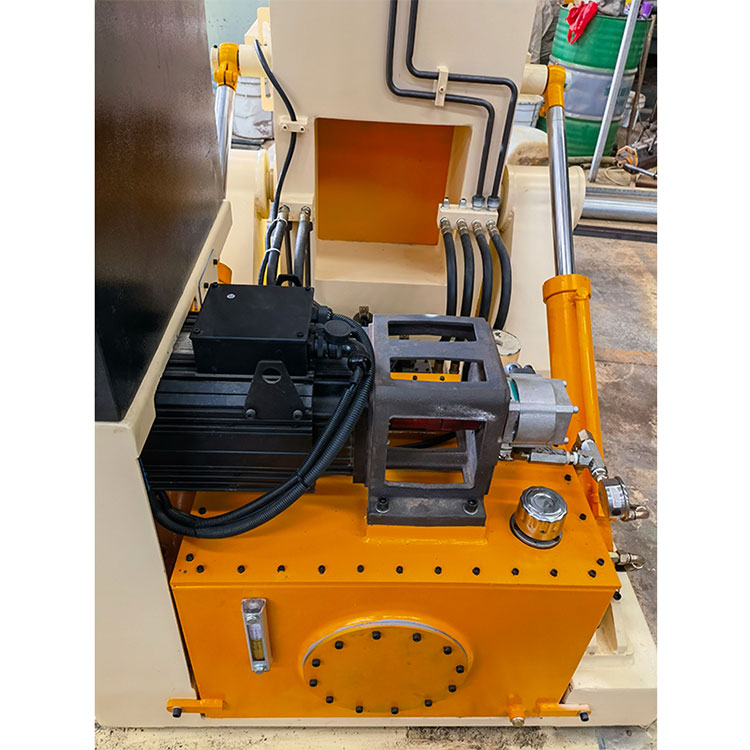

① Hydraulic system: Taiwanese brand servo precision hydraulic system [high-end configuration with automatic pressure compensation] and hydraulic accessories.
② Electrical control system: Snyder low-voltage electrical appliances. Omron proximity switches. Siemens buttons. Taiwan Mingwei power switches.
Aluminum alloy intelligent gravity casting [Fujian Zhongling]
★Robot intelligent casting (one to four)
★Aluminum alloy casting machine automatic mechanical pickup
★Aluminum alloy casting automatic bell delivery bus
