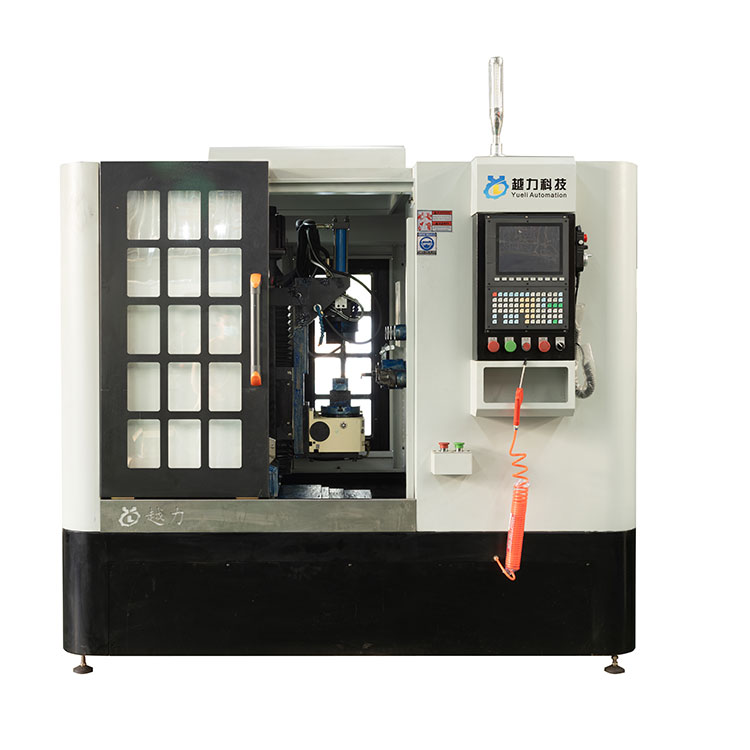

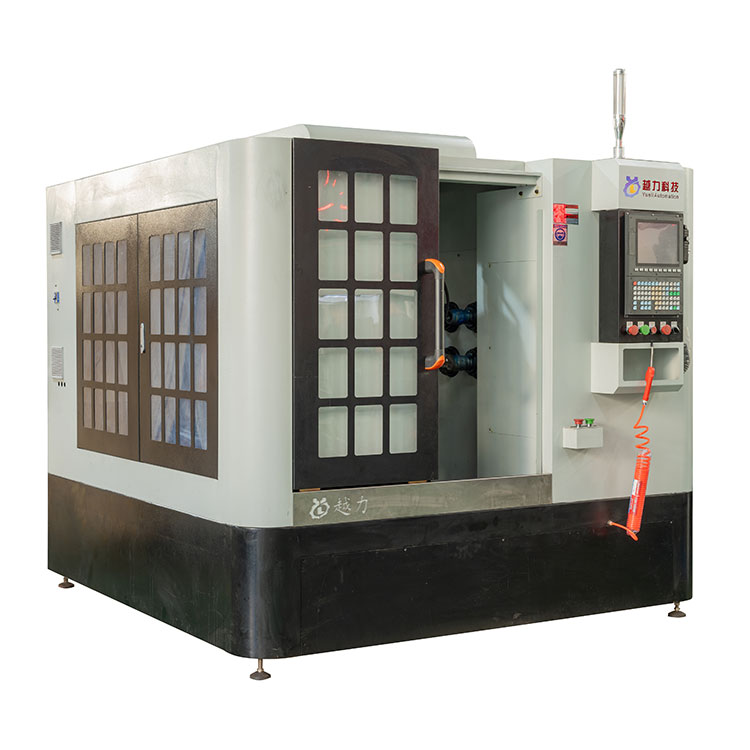

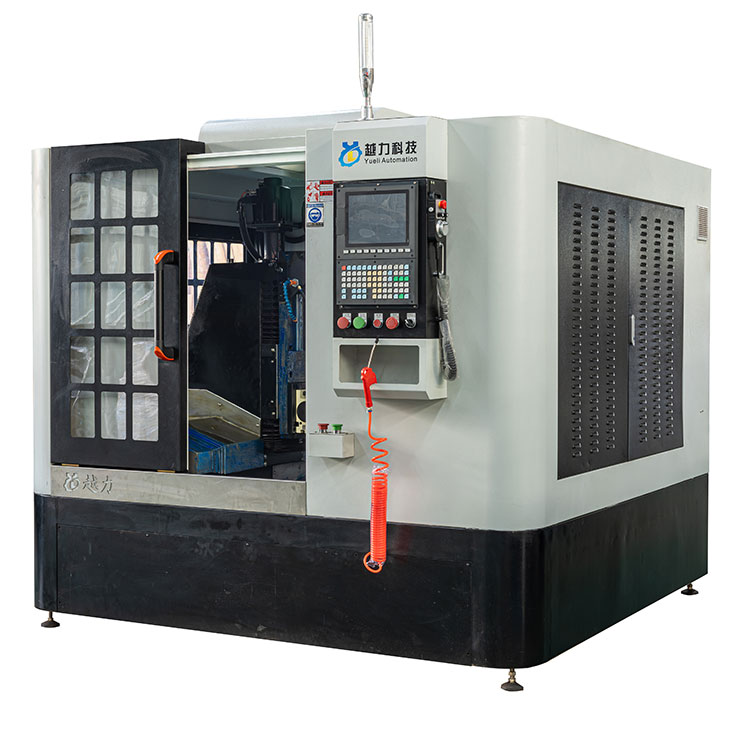

YueLi is one of the professional Horizontal Eight-Axis Slider Type Machining Center manufacturers and suppliers in China. Applicable to the processing of plumbing and bathroom, fire valves, door control hardware, home appliance hardware, water meter automobile, 5G products, hardware, medical equipment industry. Suitable for processing copper, zinc alloy, aluminum alloy, stainless steel, castings
Welcome to buy Horizontal Eight-Axis Slider Type Machining Center from our factory at any time. We will provide you with factory discount prices for our products. Applicable to the processing of plumbing and bathroom, fire valves, door control hardware, home appliance hardware, water meter automobile, 5G products, hardware, medical equipment industry. Suitable for processing copper, zinc alloy, aluminum alloy, stainless steel, castings
One replaces the processing efficiency of three machining centers, and saves the tool change time during processing
Once clamping, complete drilling, tapping, milling process, heavy cutting
Servo tapping
Milling plane and inner and outer arc
Circulating drilling and tapping

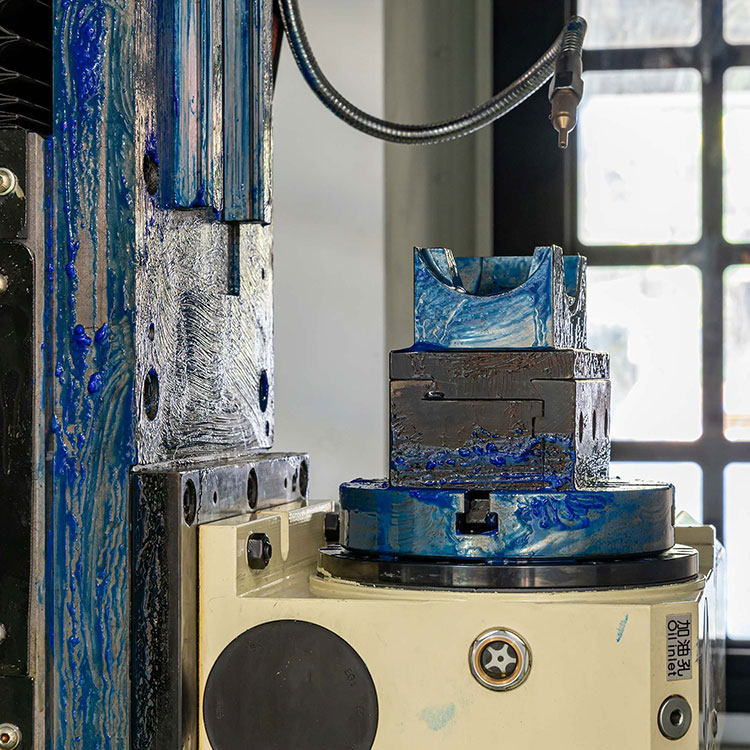

With a CAM fourth axis, the workpiece can be rotated at an infinite Angle

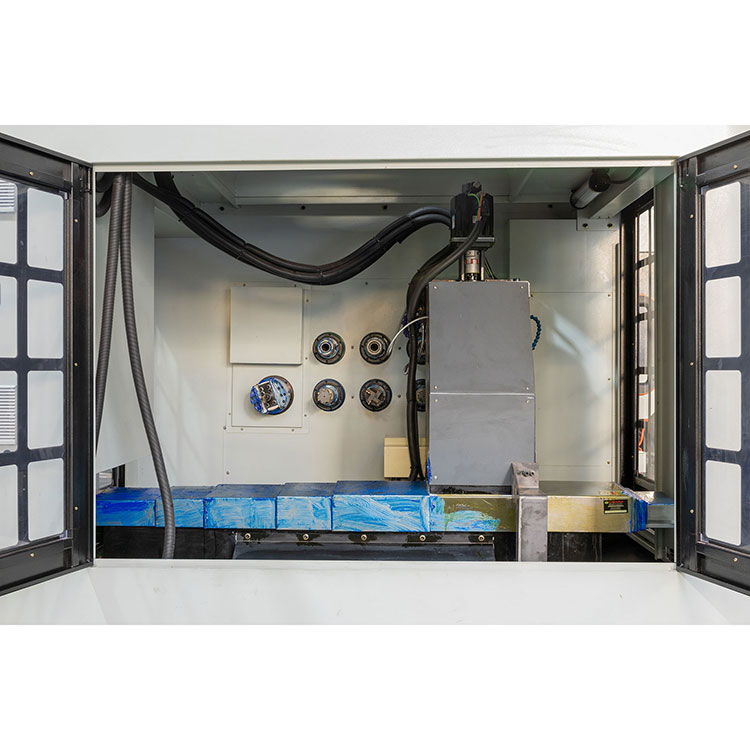

Product structure
High rigidity structure, strong stability
Suitable for medium and large quantities of copper, zinc alloy, aluminum alloy, stainless steel, steel parts processing
High quality casting, the structure of the finite element analysis, to achieve high stability
X,Y,Z axis are used Taiwan silver precision class large diameter screw, and to be properly pre-pressed, the tail end is used with pre-drawing shooting
All three axes adopt Taiwan Shang Yin precision heavy duty line rail to ensure high precision and high load bearing processing requirements
Name
|
Unit
|
Model number |
||
ZSK4860 |
ZSK4880 |
ZSK4810 |
||

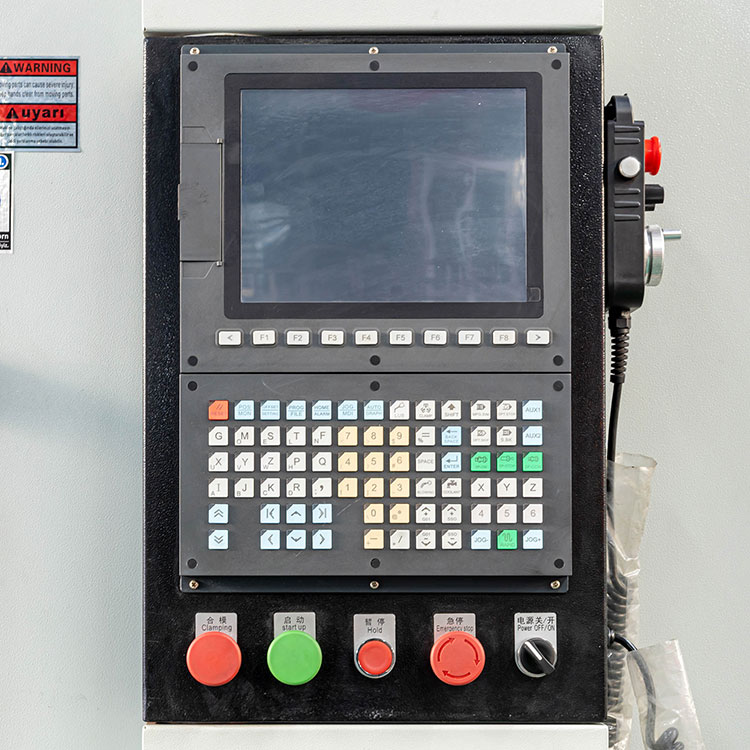

Numerical control system |
Assorting |
Taiwan Yitu |
Taiwan Yitu |
Taiwan Yitu |
Hydraulic system |
Standard configuration |
Quan MAO CML |
Quan MAO CML |
Quan MAO CML |

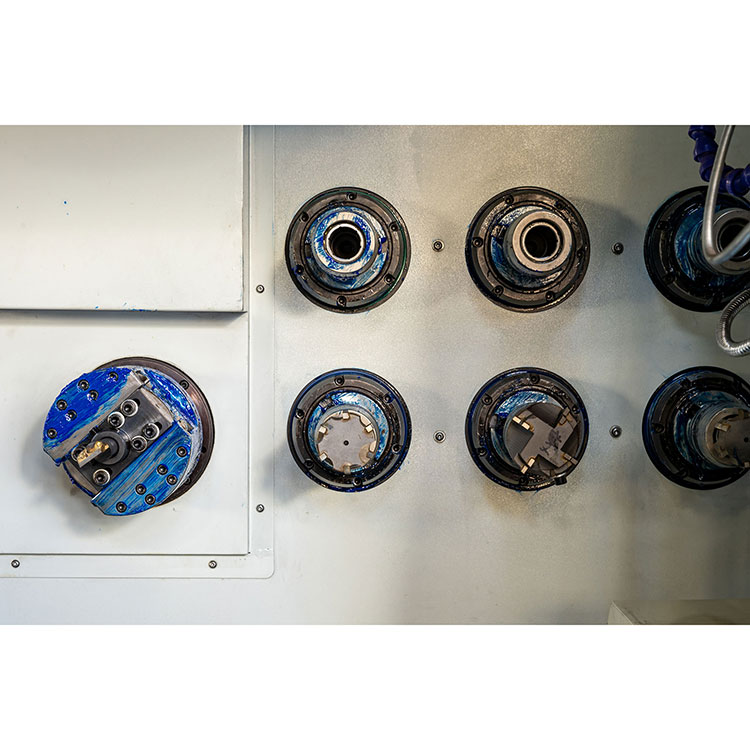

Spindle number |
|
6 |
8 |
12 |
Spindle taper |
|
BT40 |
BT40 |
BT40 |
Spindle center distance |
Mm |
120 |
120 |
120 |
Spindle extension length |
Mm |
100 |
100 |
100 |
Spindle sleeve diameter |
Mm |
φ105 |
φ105 |
φ105 |
Spindle speed |
r/min |
1-3000 |
1-3000 |
1-3000 |
X/Y/Z feed velocity |
MM |
3000MM |
3000MM |
3000MM |
Headstock travel (X axis) |
MM |
600 |
600 |
600(Customizable) |
Maximum drilling diameter (copper) |
MM |
50MM |
50MM |
50MM |
Table size |
MM |
400*500 |
400*500 |
400*500 |
Table travel (Y-axis) |
MM |
500mm |
500mm |
500mm |
Middle drag travel (Z-axis) |
MM |
500mm |
500mm |
500mm |
Distance from spindle end face to table end face |
Mm |
150-650MM |
150-650mm |
150-650mm |
Machine size |
MM |
2000*2000*2500 |
2000*2000*2500 |
2000*2500*2700 |
Machine weight |
KG |
4150KG |
4250KG |
4600KG |
1 Cast iron is reheated at high temperature and aged for more than six months.
2 Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.).
3 Exquisite scraping technology (motor base scraping, spindle end scraper, column installation surface scraper
Scrape).
4, scientific production, traceability of the whole process of the quality control system.
1 When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured.
2 The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.03mm.
3 Check the verticality between Z-axis guide rail and working, and ensure that it is within 0.03mm.
4 The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.01mm.
