YueLi is a professional China Pneumatic Tapping Machine manufacturer and supplier, if you are looking for the Pneumatic Tapping Machine, consult us now! New patented products, compressed air drive, safe, fast and efficient.
Product characteristics
1. New patented products, compressed air drive, safe, fast and efficient.
2. More cheap pressure and gas (6-8KG/CM2), super torque output.
3. Can tap all kinds of steel, iron, copper, aluminum, plastic and other materials.
Tapping ability |
working radius |
No-load speed |
working pressure |
Tapping angle |
weight |
|

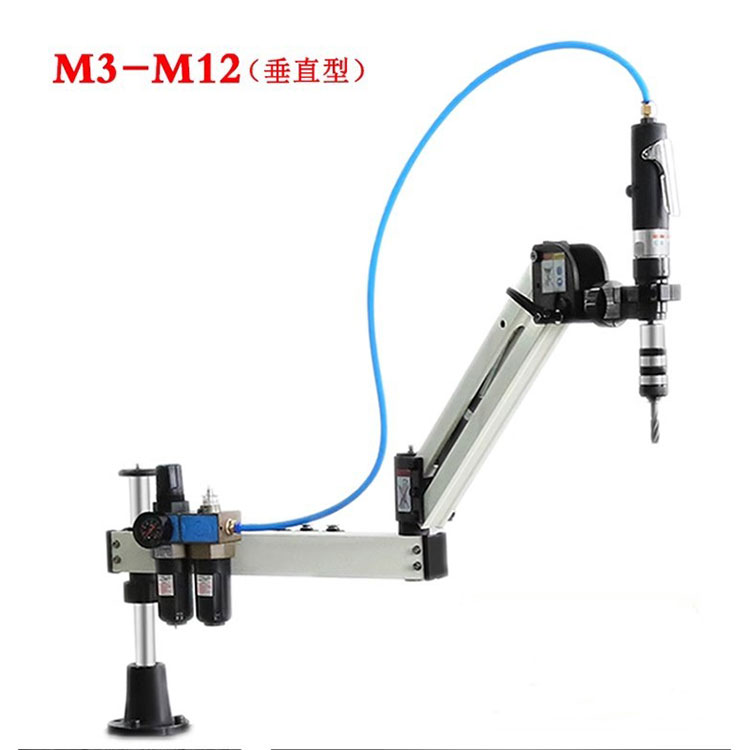

HS-12G |
M3-M12 |
1.0M |
400rpm |
6-8KG |

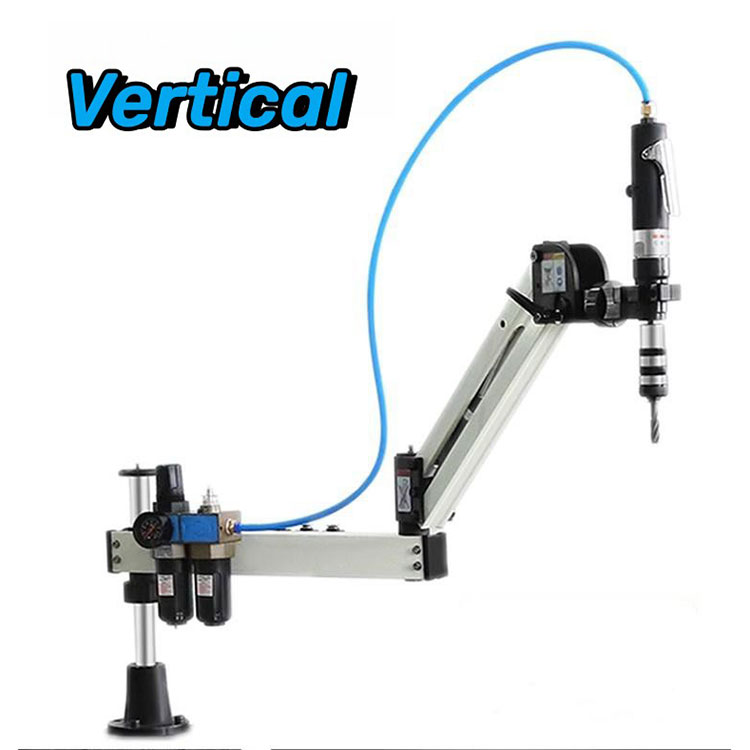

vertical |
19KG |
HS-12w |
M3-M12 |
1.0M |
400rpm |
6-8KG |

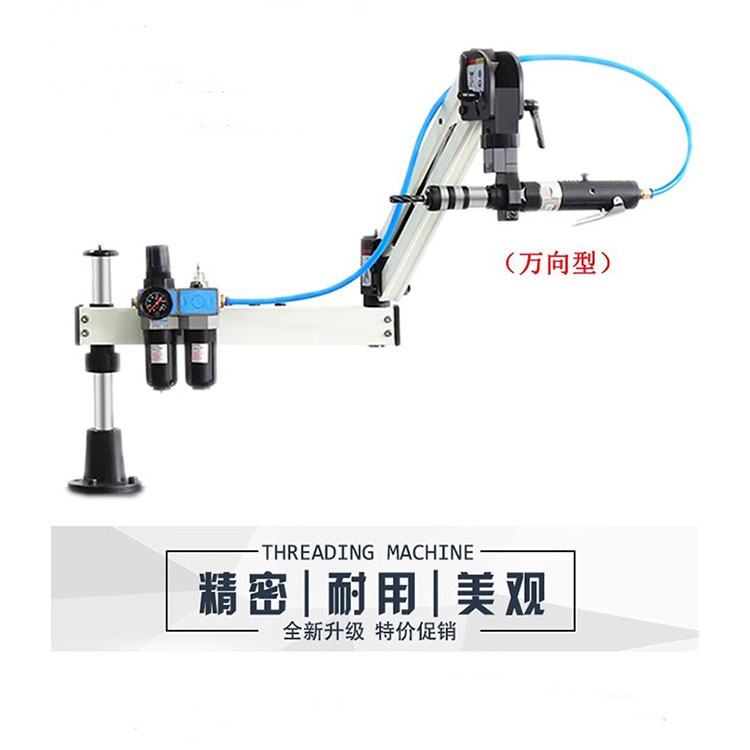

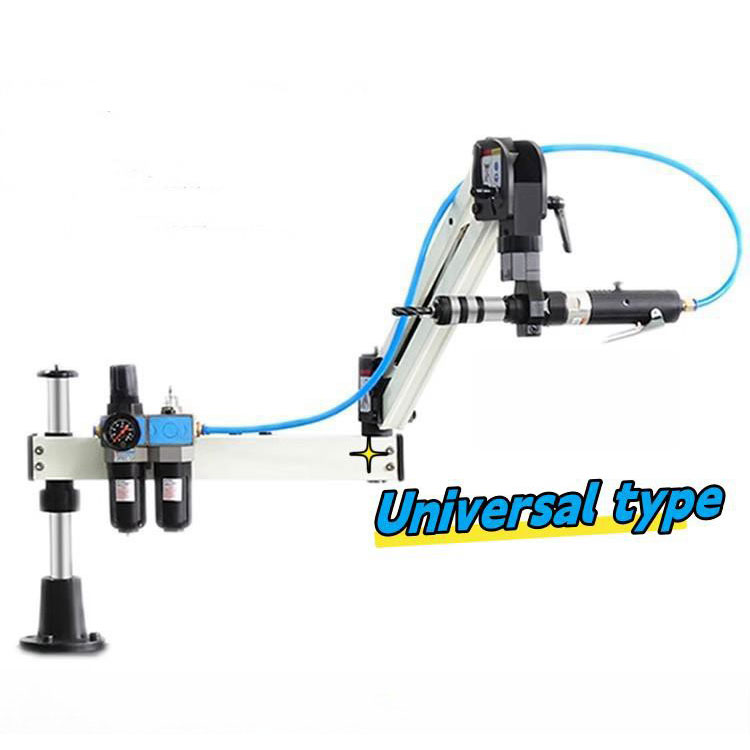

universal |
20KG |
HS-16G |
M3-M16 |
1.0M |
250rpm |
6-8KG |
vertical |
23KG |
HS-16w |
M3-M16 |
1.0M |
250rpm |
6-8KG |
universal |
24KG |
HS-24G |
M6-M24 |
1.2M |
90/250rmp |
6-8KG |
vertical |
44KG |
HS-24w |
M6-M24 |
1.2M |
90/250rmp |
6-8KG |
universal |
45KG |
Taiwan quality pneumatic motor
Tapping ability: M3-M12M3-M16
No-load speed: 400RPM200RPM
Spindle taper: B12B16
Working pressure: 6-8KG
The bracket is made of high-strength aluminum alloy and formed into a one-time mold.
The upper bracket is equipped with an imported air pressure spring, which is easy to operate, stable and durable. The bracket connection is a flat needle roller bearing. The mechanical arm is easy to use and flexible.
Adjustment method: gently pull up the knob, turn the knob clockwise to increase the atmospheric pressure, or counterclockwise to decrease the pressure.
02-Lubricating oil adjustment switch adjustment
Method: Turn the knob clockwise to increase oil output
quantity, otherwise it will decrease. The optimal dripping speed is 3 to 5 drops per minute.
03-Filling hole
Refueling method: Use an Allen wrench to unscrew the screw and pour an appropriate amount of special oil for pneumatic tools (viscosity around 30). Recommended: Sewing machine lubricating oil. Light lubricating oil can fill two-thirds of the oil cup.
M3-M12 |
M3-M16 |
||
frame |
1 set |
frame |
1 set |
Air motor |
1 stick |
Air motor |
1 stick |
air source processor |
1 set |
air source processor |
1 set |
Torque chuck |
6stick |
Torque chuck |
6stick |
Torque adjustment wrench |
1 handful |
Torque adjustment wrench |
1 handful |
trachea |
1 item |
trachea |
1 item |
manual |
1 serving |
manual |
1 serving |
