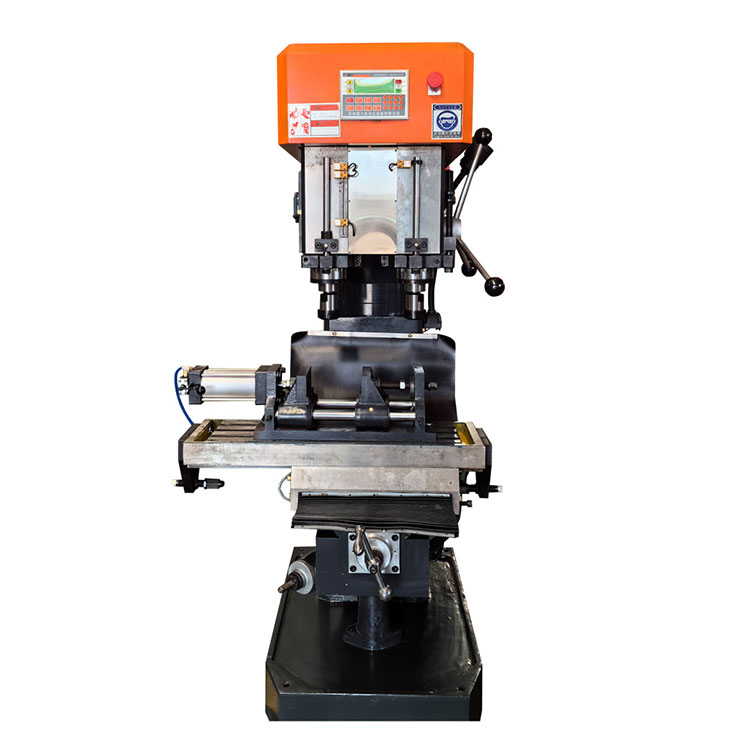

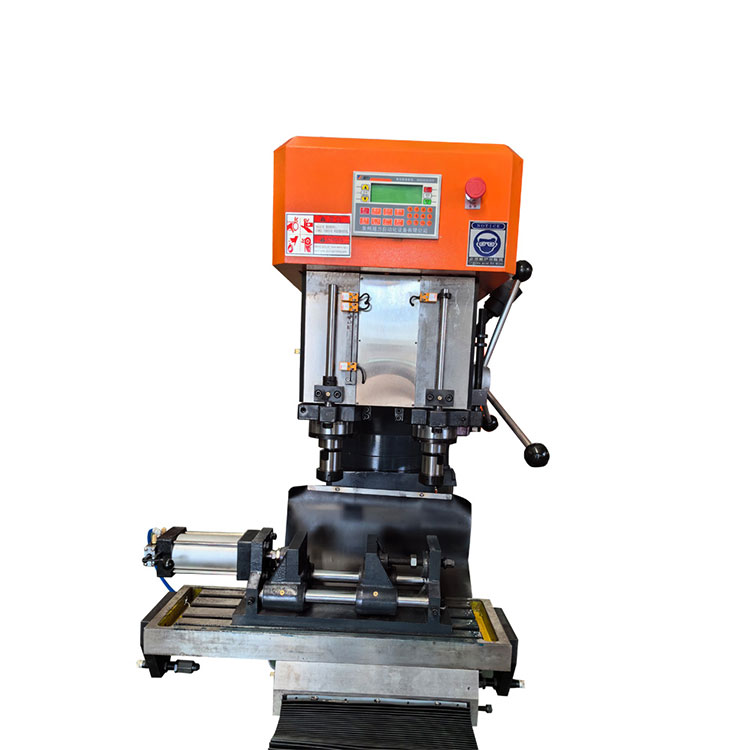

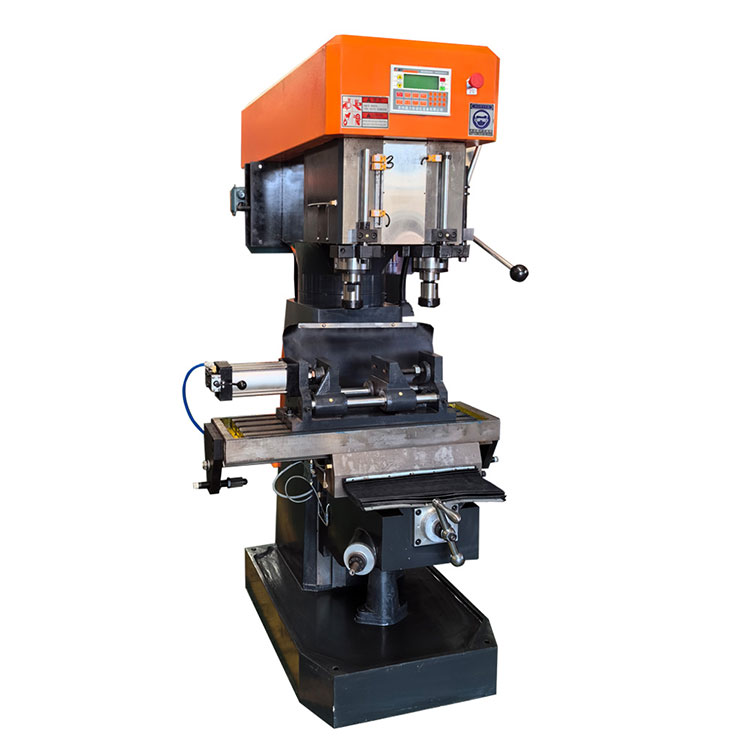

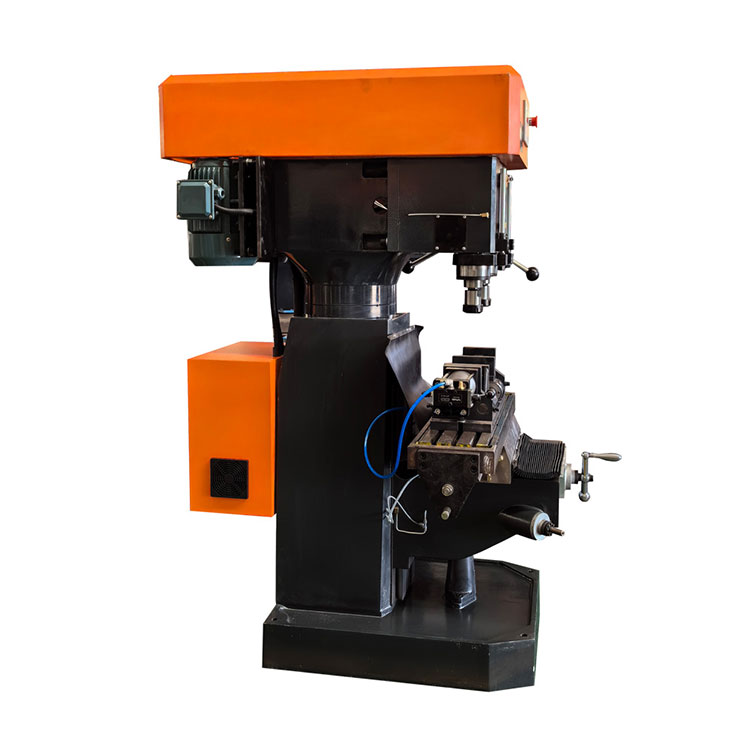

Introducing our Multi-Spindle Drilling and Tapping Center, designed for efficient and precise drilling and tapping operations. This vertical drilling machine is equipped with advanced features and offers excellent technical support and a 1-year warranty. Perfect for bearing seat, faucet, and sliding block machining.
This series of manual machine tools consists of a base, a column, a lifting table, a saddle, a table, and a spindle unit.
●1 sliding sleeve type double spindle manual feed unit.
●1 pneumatic shift transmission table.
●1 pneumatic shift transmission saddle.
●PLC programmable controller, man-machine interface touch screen operating terminal
Parameter name |
unit |
|
|||
ZS4150×2 |
ZS4150×2A |
ZS4150×2B |
|ZS4150×2C |
||
Spindle sleeve diameter |
mm |
90 |
|||
Number of cutting spindle axes |
/ |
2 |
|||
Maximum hole diameter |
mm |
50 |
|||
Maximum tapping diameter |
mm |
50 |
|||
Spindle taper hole |
# |
MT4 |
|||
Z1/Z2 spindle spacing |
mm |
240 |
|||
Distance between spindle end face and work surface |
mm |
240~530 |
|||
Table size |
mm |
800×230 |
|||
Table travel X axis |
mm |
250 |
|||
Saddle travel Y axis |
mm |
Manual operation120 |
Pneumatic210 |
||
Spindle travel (drilling/tapping) |
mm |
140/140 |
|||
Manual, automatic tapping |
/ |
Manual operation |
Auto |
Manual operation |
Auto |
Fastest moving speed on the X-axis |
m/min 18 |
15 |
|||
Borehole spindle speed |
rpm |
675/1013 |
|||
Tapping spindle speed |
rpm |
345/518 |
|||
Drilling motor model |
/ |
YD132S-6/4-B3 |
|||
Tapping motor model |
/ |
YD132S-6/4-B3 |
|||
Gross power |
kw |
8 |
|||
Overall dimensions (L × W × H) |
mm |
1420×920×1800 |
|||
Machine weight |
kg |
1250 |
1270 |
1300 |
Used in valve, water heating sanitary ware, door control hardware, fire hydrant, auto parts and other processing, a wide range of applications, easy to operate, beautiful appearance, high cost performance.
1 Cast iron is reheated at high temperature and aged for more than six months.
2 Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.).
3 Exquisite scraping technology (motor base scraping, spindle end scraper, column installation surface scraper
4, scientific production, the whole process of traceability of quality control.
