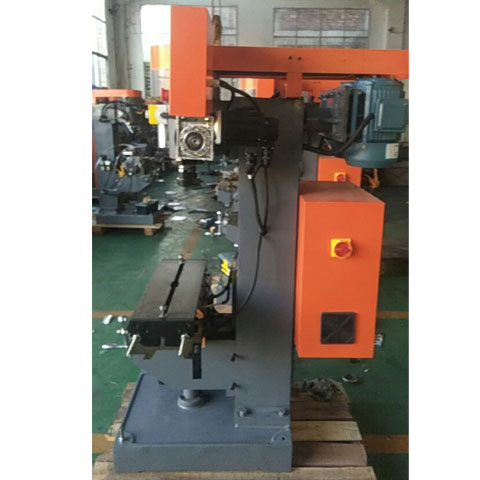

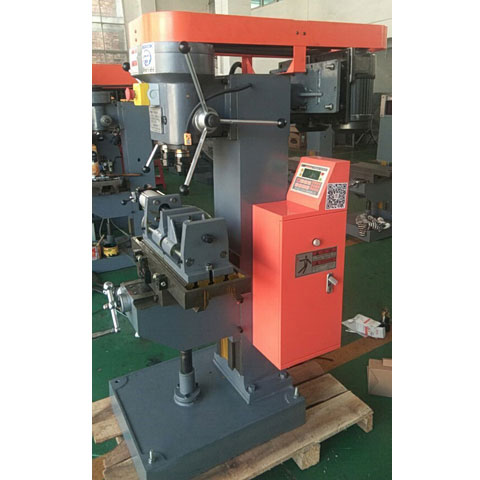

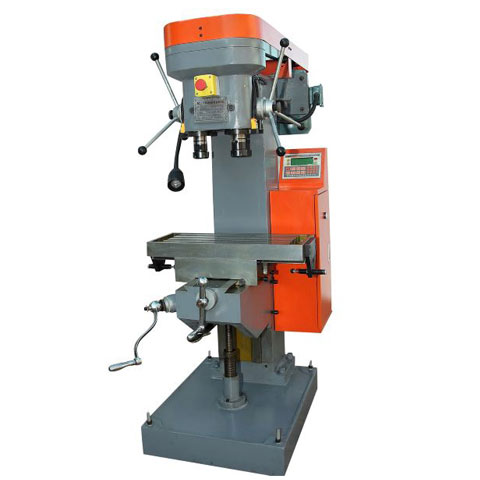

The manual working machine consists of a base, a column, a lifting table, a middle trailer, a working table and a spindle unit

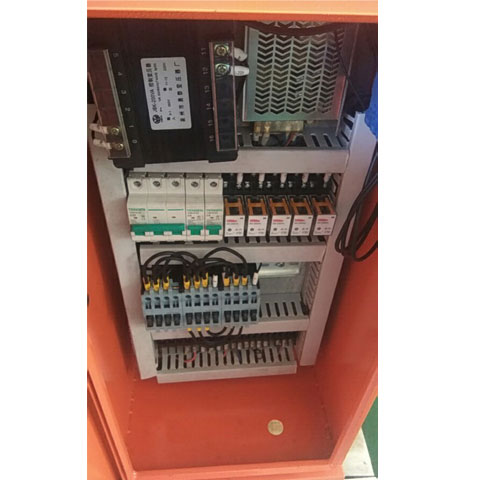

PLC Control Program Control, man-machine interface friendly dialogue, intuitive programming easy to operate, ordinary people can quickly learn

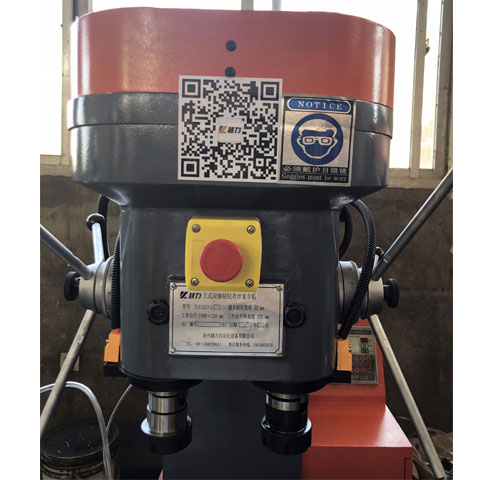

Sliding sleeve type double spindle manual feed unit, Korean imported pneumatic transmission worktable. The table adopts pneumatic device and hydraulic buffer positioning, moving, positioning accuracy is high. Eliminates the old-fashioned equipment easy to appear the screw thread does not malfunction
Worktable after high-frequency processing, wear-resistant, high-temperature, equipped with Lubrication System
Applied to valves, plumbing sanitary ware, door control hardware, fire hydrants, auto parts and other processing, easy to operate, beautiful appearance, cost-effective.
Parameter name |
Unit |
Model |
||||
ZS4150×2 |
ZS4150×2A |
ZS4180×2 |
ZS4180×2A |
|||
Diameter of spindle sleeve |
MM |
90 |
110 |
|||
Number of cutting spindles |
/ |
2 |
2 |
|||
Transmission Mode |
/ |
First-stage Synchronous Belt Drive |
First-stage Synchronous Belt Drive |
|||
Maximum dilling diameter |
MM |
50 |
80 |
|||
Maximum tapping dimeter |
MM |
50 |
80 |
|||
Spindle taper |
# |
MT40 |
NT40 |
|||
Spindle pitch |
MM |
240 |
240 |
|||
Distance between spindle end face and worktable surface |
MM |
240-580 |
|
|||
Dimension of Work Table |
MM |
800×230 |
800×230 |
|||
Table Travel(X) |
MM |
250 |
250 |
|||
Middle Tow travel(Y) |
MM |
Manual Operation 120 |
Manual Operation 120 |
|||
Spindle stroke (drilling/tapping) |
MM |
140/140 |
140/140 |
|||
Manual / Automatic Tapping |
/ |
Manual Operation |
Automatic tapping |
Manual Operation |
Automatic tapping |
|
Drilling spindle speed |
Rpm |
1013 |
1013 |
|||
Tapping spindle speed |
Rpm |
518 |
518 |
|||
Type of drilling motor |
/ |
4KW/4P |
4KW/4P |
|||
Type of tapping motor |
/ |
4KW/4P |
4KW/4P |
|||
Total Power |
kw |
8 |
8 |
|||
Dimensions (length * Width * Height) |
Mm |
1420*920*1800 |
1420*920*1800 |
|||
Machine Weight |
kw |
1250 |
1270 |
1300 |
1350 |
